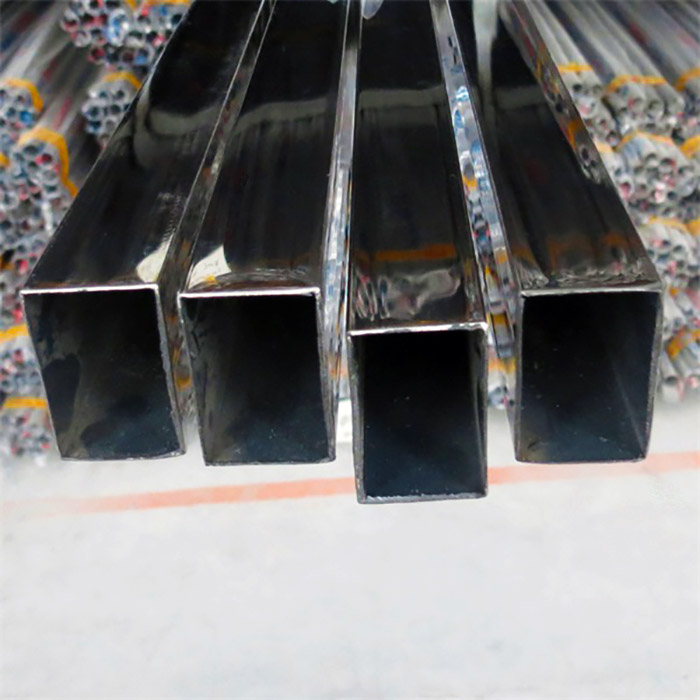

Stainless Steel Rectangular Tube

1. Types: RHS tube, rectangular tube
2. Application: Industrial Construction, Machinery/Rack/Container, etc
3. OD: 10*20m-400*600mm, WT: 0.5-20mm, L: 0.1-18mtr
4. Standard & Grade: ASTM A500, ASTM A53, EN10210, EN10219, JIS G3466, BS1387, BS6323
5. End: Square cut, Burr removed
Availability:


What is Stainless Steel Rectangular Tube

Stainless steel rectangular tubes are formed from coils and then ran through a series of dies. They are welded from the inside to form their shape. Stainless steel rectangular tube with high strength and superior corrosion resistance. It is widely in various project indoor industrial and outer construction projects. No matter how terrible the environment of the project. Stainless steel rectangular tube will be showing good working performance. Because the shape of the stainless steel rectangular pipe is hollow long steel with a rectangular cross-section. Its lightweight makes it used in manufacturing mechanical parts and engineering structures.



Size of Stainless Steel Rectangular Tube


SS Rectangular Pipe Size

Wall Thickness

10 x 20

0.9mm - 1.5mm

10 x 30

0.9mm - 1.5mm

10 x 40

0.9mm - 1.5mm

10 x 50

0.9mm - 1.5mm

12 x 25

0.9mm - 1.5mm

12 x 54

0.9mm - 1.5mm

14 x 80

0.9mm - 1.5mm

15 x 30

0.9mm - 1.5mm

20 x 40

0.9mm - 2mm

20 x 50

0.9mm - 2mm

35 x 85

2mm - 3mm

40 x 60

2mm - 3mm

40 x 80

2mm - 5mm

50 x 100

2mm - 5mm

50 x 150

2mm - 5mm

50 x 200

2mm - 5mm

75 x 150

2mm - 5mm

75 x 200

2mm - 5mm

100 x 200

2mm - 5mm

100 x 300

2mm - 5mm


Manufacturing process of Stainless Steel Rectangular Tube

Uncoiling --- Flattening --- Shearing and butt welding --- Circle shearing --- Loop storing--- Roll forming --- High-frequency welding --- Removal of burrs --- Water cooling --- Forming --- Non-destructive inspection --- Cutting off --- Corrosion-resistant coating --- Inspection --- Marking ---Packing and warehousing



Standard of Stainless Steel Rectangular Tube

GB,AISI,ASTM,DIN,EN,JIS


Application of Stainless Steel Rectangular Tube

  • Chemical

  • Environmental

  • Food processing

  • Petrochemical & Refinery
