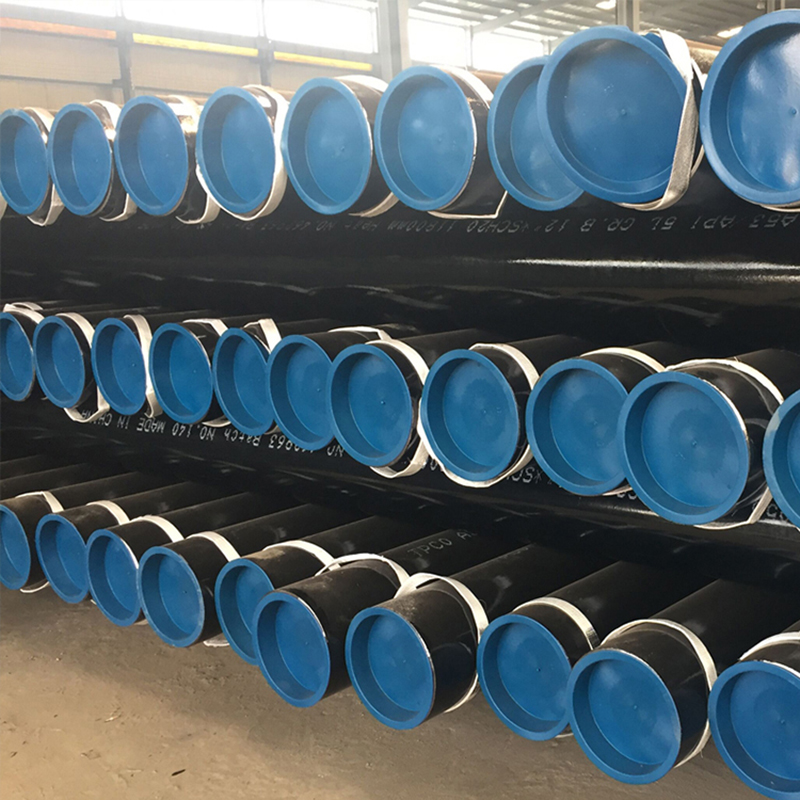

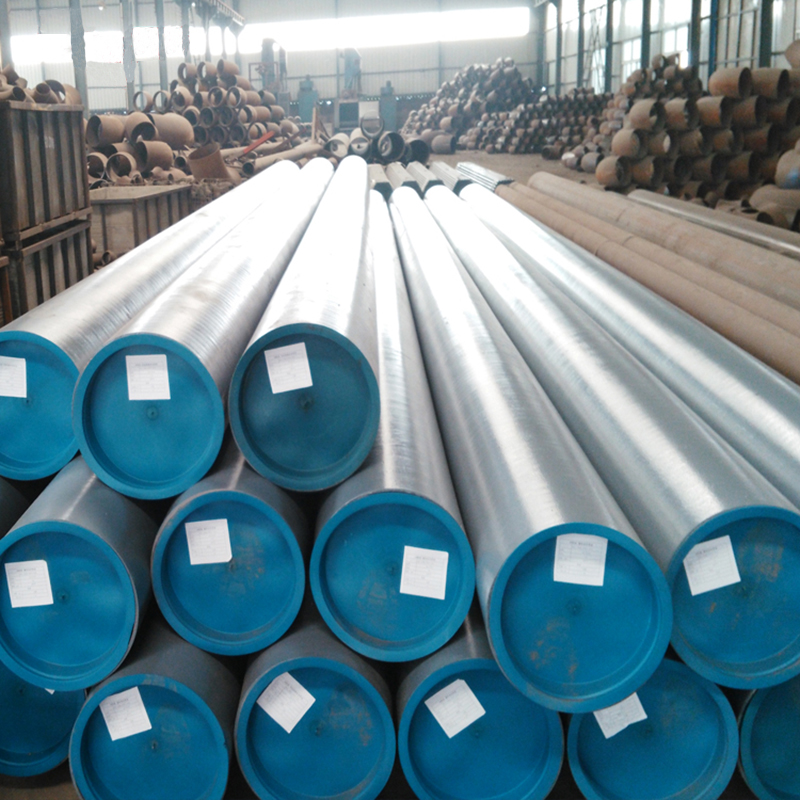

API 5L Pipe


  1. OD size: 25 - 4000 mm
  2. Wall thickness: 1 - 80 mm
  3. Length: 5.8m/6m/12m customized
  4. Standard: API 5L etc.
  5. Ends: Plain/ beveled ends with plastic caps
  6. Usage: Structure pipe, Low-Pressure fluid pipe for water oil or gas, Boiler pipe

Availability:


What is API 5L pipe

API 5L pipe for pipeline transportation systems in the petroleum and natural gas industries.  This steel pipe is suitable for conveying gas, water, and oil. It covers PSL1, PSL2, Sour Services, for onshore and offshore pipelines. Manufacturing types including seamless and welded. PSL1 generally uses which equivalent to ASTM A106 B and A53 B. PSL2 is a higher specification level pipe, has more strict value on chemical and mechanical strength. Moreover, PSL2 requires more test methods. API 5L B PSL2 expressed with API 5L BN/Q/R/M. Sour Services: For sour pipelines like H2S environment, pipe material have typical restrictions on chemicals element of Carbon, P and S. API 5L B Pipe for Sour Service expressed in API 5L BNS/QS/MS



Size chart of API 5L pipe

NPS
(in)



Outside Diameter
(in)



API 5l Pipe Schedule

SCH 10

SCH 20

SCH 30

SCH STD

SCH 40

SCH 60

SCH XS

SCH 80

SCH 100

SCH 120

SCH 140

SCH 160

SCH XXS

Wall Thickness (in)

1/8

0.405




0.068

0.068


0.095

0.095






1/4

0.54




0.088

0.088


0.119

0.119






3/8

0.675




0.091

0.091


0.126

0.126






1/2

0.84




0.109

0.109


0.147

0.147




0.187

0.294

3/4

1.05




0.113

0.113


0.154

0.154




0.219

0.308

1

1.315




0.133

0.133


0.179

0.179




0.25

0.358

1 1/4

1.66




0.14

0.14


0.191

0.191




0.25

0.382

1 1/2

1.9




0.145

0.145


0.2

0.2




0.281

0.4

2

2.375




0.154

0.154


0.218

0.218




0.344

0.436

2 1/2

2.875




0.203

0.203


0.276

0.276




0.375

0.552

3

3.5




0.216

0.216


0.3

0.3




0.438

0.6

3 1/2

4




0.226

0.226


0.318

0.318






4

4.5




0.237

0.237


0.337

0.337


0.438


0.531

0.674

5

5.563




0.258

0.258


0.375

0.375


0.5


0.625

0.75

6

6.625




0.28

0.28


0.432

0.432


0.562


0.719

0.864

8

8.625


0.25

0.277

0.322

0.322

0.406

0.5

0.5

0.594

0.719

0.812

0.906

0.875

10

10.75


0.25

0.307

0.365

0.365

0.5

0.5

0.594

0.719

0.844

1

1.125

1

12

12.75


0.25

0.33

0.375

0.406

0.562

0.5

0.688

0.844

1

1.125

1.312

1

14

14

0.25

0.312

0.375

0.375

0.438

0.594

0.5

0.75

0.938

1.094

1.25

1.406


16

16

0.25

0.312

0.375

0.375

0.5

0.656

0.5

0.844

1.031

1.219

1.438

1.594


18

18

0.25

0.312

0.438

0.375

0.562

0.75

0.5

0.938

1.156

1.375

1.562

1.781


20

20

0.25

0.375

0.5

0.375

0.594

0.812

0.5

1.031

1.281

1.5

1.75

1.969


22

22

0.25

0.375

0.5

0.375


0.875

0.5

1.125

1.375

1.625

1.875

2.125


24

24

0.25

0.375

0.562

0.375

0.688

0.969

0.5

1.219

1.531

1.812

2.062

2.344


30

30

0.312

0.5

0.625

0.375



0.5







32

32

0.312

0.5

0.625

0.375

0.688









34

34

0.312

0.5

0.625

0.375

0.688









36

36

0.312

0.5

0.625

0.375

0.75









42

42


0.5

0.625

0.375

0.75











Manufacturing process of API 5L pipe

products_01



Standard of API 5L pipe

Dimensional tolerances

Standard



Outer diameter tolerance

Wall thickness tolerance

A25.A.B

X42-X70



D<60.3

+0.41/-0.40mm

D<73

-160

D≥73

-120

API SPEC 5L

D≥60.3

+0.75/-0.40mm

D≥73

-120

D>73

-120

Mechanical properties

Standard

Grade

Yield strength (MPa)

Tensile strength (MPa)

Elongation

API SPEC 5L






















PSL1


A25

172

310


A

207

331


B

241

414


X42

290

414


X46

317

434


X52

359

455


X56

386

490


X60

414

517


X65

448

531


X70

483

565


PSL2



Min

Max

Min

Max


B

241

448

414

758


X42

290

496

414

758


X46

317

524

434

758


X52

359

531

455

758


X56

386

544

490

758


X60

414

565

517

758


X65

448

600

531

758


X70

483

621

565

758


X80

552

690

621

827









Chemical composition

Standard


Grade


C

Mn

P


S

Max

Max

Min

Max

Max

API SPEC 5L













PSL1

A25II

0.21

0.6


0.03

0.03

A25III

0.21

0.6

0.45

0.8

0.03

A

0.22

0.9


0.03

0.03

B

0.28

1.2


0.03

0.03

X42

0.28

1.3


0.03

0.03

X46.X52.X56

0.28

1.4


0.03

0.03

X60.X65.X70

0.28

1.4


0.03

0.03

PSL2

B

0.24

1.2


0.025

0.015

X42

0.24

1.3


0.025

0.015

X46.X52.X56

0.24

1.4


0.025

0.015

X60.X65.X70.X80

0.24

1.4


0.025

0.015



Application of API 5L pipe

  • High technology and high value-added product

  • Metallurgy field

  • High-pressure gas transportation

  • High cold and corrosion service
