SCH40 Aluminum Pipe

1. Type: SCH40 Aluminum Pipe, Industrial Aluminum Pipe
2. Application: Bicycle Parts, aircraft ducting, wheelchair frames, etc
3. OD: 3 – 2500mm, WT: 0.2 – 150mm
4. End: Plain end/Beveled, grooved, threaded and coupling, etc.
5. Surface: Anodized, Oxidation, powder coating, etc
Availability:

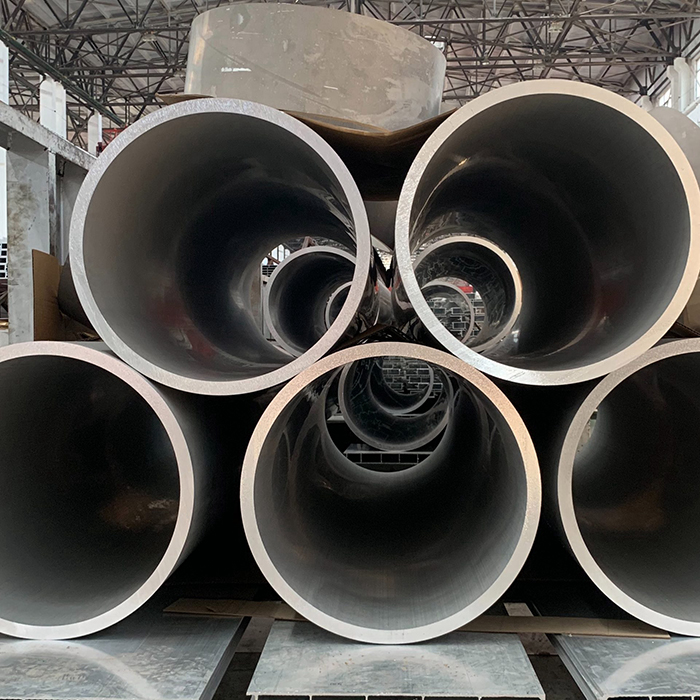

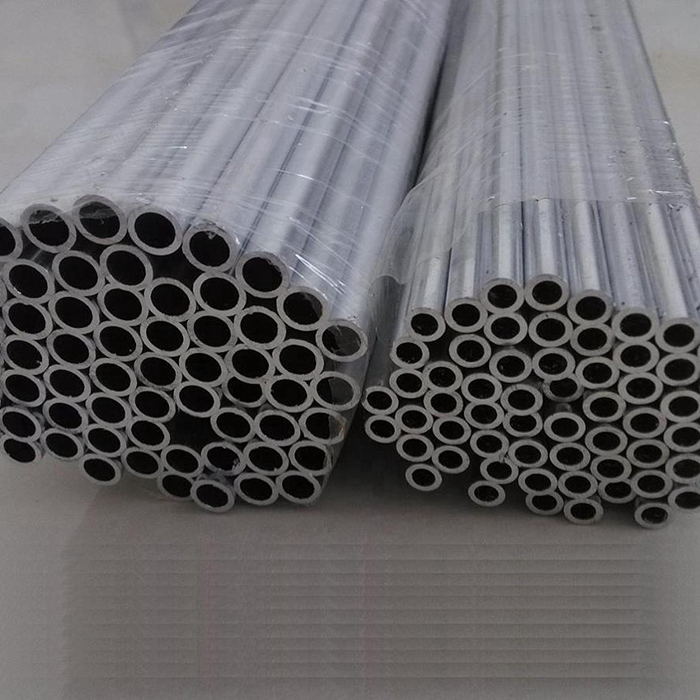

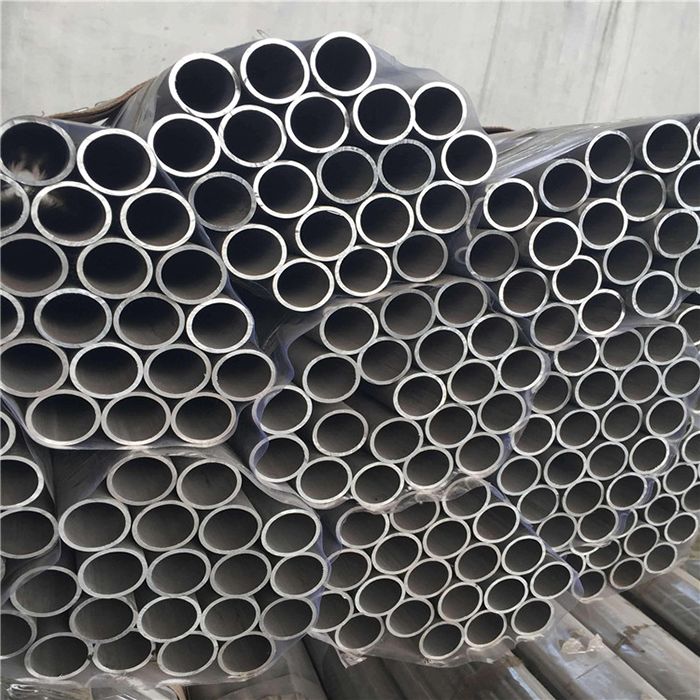

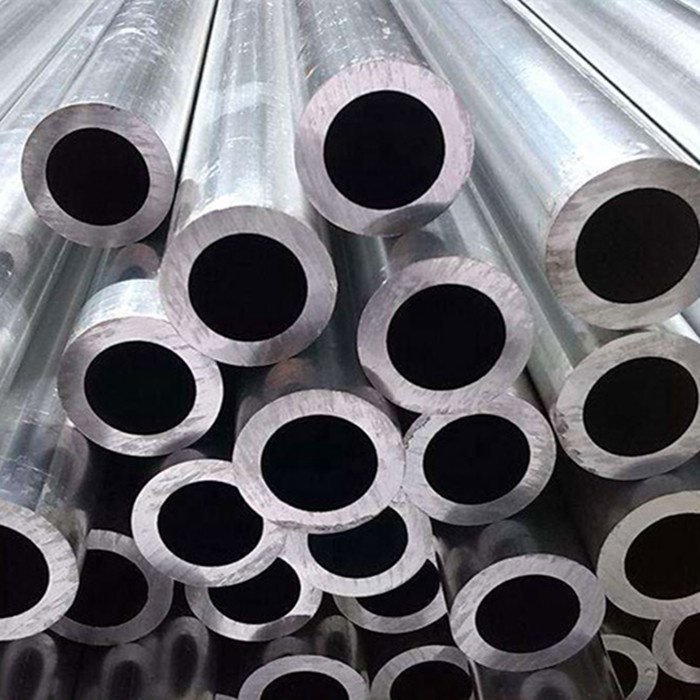

SCH40 Aluminum Pipe
SCH40 Aluminum Pipe
SCH40 Aluminum Pipe
SCH40 Aluminum Pipe
SCH40 Aluminum Pipe
SCH40 Aluminum Pipe


What is SCH40 Aluminum Pipe

The specific aluminum pipe is identified by pipe diameter and another non-dimensional number for wall thickness referred to as the schedule. Schedule 40 aluminum pipes are widely used in various industries. But the schedule 40 aluminum pipe has 2 types: Sch40 aluminum extruded pipe and Sch40 aluminum drawn pipe.


SCH 40 Aluminum extruded pipe:

It is formed by hot extruding through a die, is available as a seamless or structural grade product.

SCH 40 Aluminium Drawn Pipe:

It is a seamless extruded Pipe that is brought to final size by drawing through a die.


Both these two pipes have a high strength-to-weight ratio, making them ideal for large parts that need to be very light. Various industries choose it becomes parts.



Size of SCH40 Aluminum Pipe

Aluminum Pipe Sch. 40

I.P.S. in Inches

Outside Diameter Inches

Inside Diameter Inches

Wall Thickness Inches

Weight Per Ft.

1/8

0.405

0.269

0.068

0.085

1/4

0.54

0.364

0.088

0.147

3/8

0.675

0.493

0.091

0.196

1/2

0.84

0.622

0.109

0.294

3/4

1.05

0.824

0.113

0.391

1

1.315

1.049

0.133

0.581

1.25

1.66

1.38

0.14

0.786

1.5

1.9

1.61

0.145

0.94

2

2.375

2.067

0.154

1.26

2.5

2.875

2.469

0.203

2

3

3.5

3.068

0.216

2.62

3.5

4

3.548

0.226

3.15

4

4.5

4.026

0.237

3.73

5

5.563

5.047

0.258

5.06

6

6.625

6.065

0.28

6.56

8

8.625

7.981

0.322

9.88

10

10.75

10.02

0.365

14

12

12.75

12

0.375

17.14



Standard of SCH40 Aluminum Pipe

ASTM B210/ B221/ B235 /B241 B313 /B317 /B345 /B404 /B429 /B483 /B491 /B547


Application of SCH40 Aluminum Pipe

  • Auto motive

  • Building

  • Electrical

  • General engineering

  • Packaging

  • Renewable energy

  • Transport

  • Aerospace
