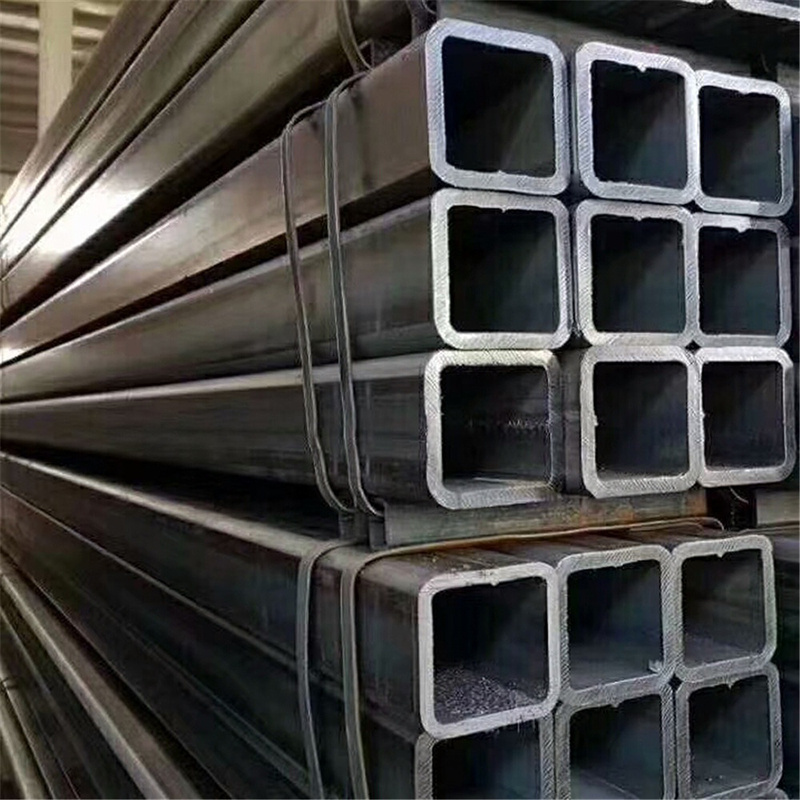

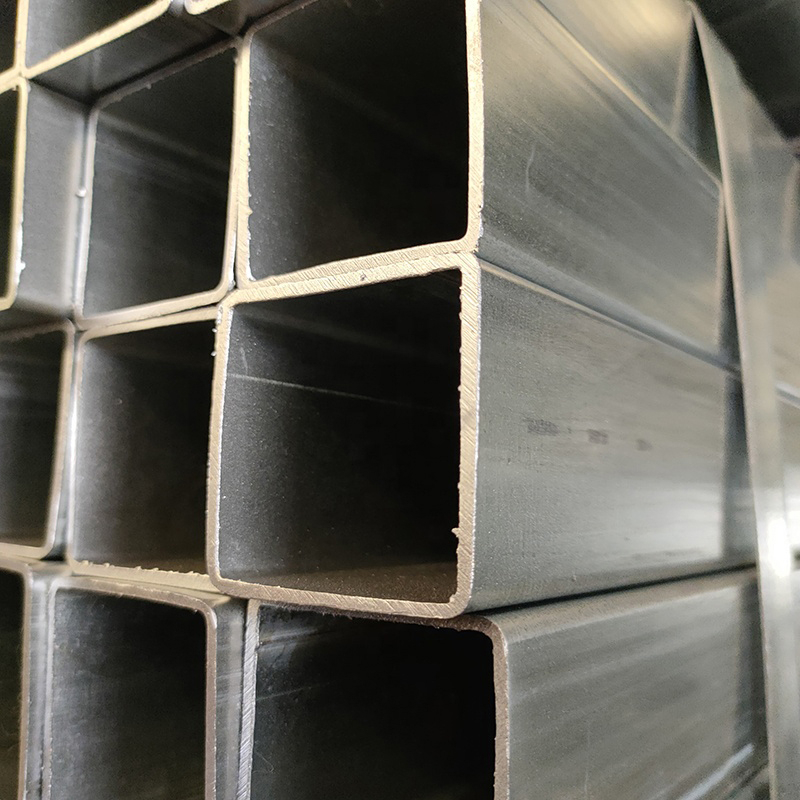

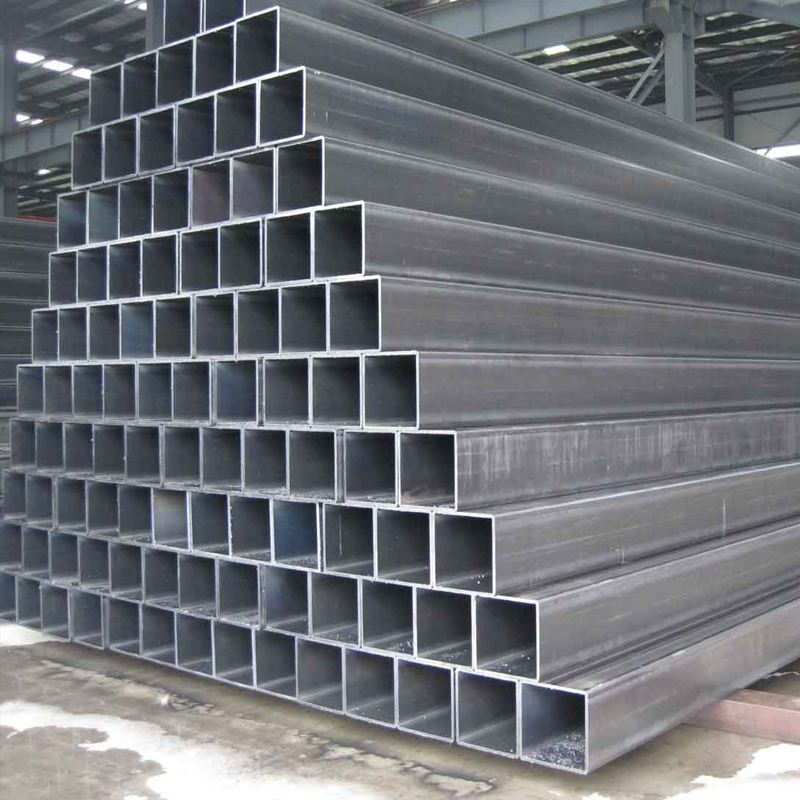

What is the mild steel square tube?
The square tube is a welded hollow square-cut steel tube that is specifically designed to be used in all types of construction projects. Either the type A513 or A500 Grade B, depending on its size and wall thickness. The square steel tube shape design allows for increased rigidity and strength compared to other steel product shapes. For the grade ideal for all structural applications, general fabrication, manufacturing, and repairs. Square steel tubes can also be cut, formed, machined, and welded to your exact specification. The shape configuration allows for much greater strength and rigidity compared to angles or channels. This steel tube shape is easy to weld, cut form, and machine with proper equipment and knowledge.
What is the mild steel square tube?
The square tube is a welded hollow square-cut steel tube that is specifically designed to be used in all types of construction projects. Either the type A513 or A500 Grade B, depending on its size and wall thickness. The square steel tube shape design allows for increased rigidity and strength compared to other steel product shapes. For the grade ideal for all structural applications, general fabrication, manufacturing, and repairs. Square steel tubes can also be cut, formed, machined, and welded to your exact specification. The shape configuration allows for much greater strength and rigidity compared to angles or channels. This steel tube shape is easy to weld, cut form, and machine with proper equipment and knowledge.
Size chart of mild steel square tube
Size | Wall thickness | Size | Wall thickness | Size | Wall thickness | Size | Wall thickness |
mm | mm | mm | mm | mm | mm | mm | mm |
10×10 | 0.6-0.8 | 42×42 | 1.2-6.0 | 90×90 | 2.5-6.0 | 150×150 | 4.0-8.0 |
12×12 | 0.6-0.8 | 45×45 | 1.2-6.0 | 95×95 | 2.5-6.0 | 160×160 | 4.0-8.0 |
13×13 | 0.6-2.0 | 48×48 | 1.2-6.0 | 100×100 | 2.5-6.0 | 180×180 | 4.0-8.0 |
15×15 | 0.7-2.0 | 50×50 | 1.5-6.0 | 105×105 | 2.5-6.0 | 200×200 | 5.0-10.0 |
16×16 | 0.7-2.0 | 55×55 | 1.5-6.0 | 110×110 | 3.0-6.0 | 220×220 | 8.0-25.0 |
20×20 | 1.0-3.0 | 60×60 | 1.5-6.0 | 115×115 | 3.0-6.0 | 250×250 | 8.0-25.0 |
25×25 | 1.0-3.0 | 65×65 | 2.0-6.0 | 120×120 | 3.0-6.0 | 280×280 | 8.0-25.0 |
30×30 | 1.2-4.0 | 70×70 | 2.0-6.0 | 125×125 | 3.0-6.0 | 300×300 | 8.0-25.0 |
35×35 | 1.0-4.0 | 75×75 | 2.0-6.0 | 130×130 | 3.0-6.0 | 350×350 | 8.0-25.0 |
38×38 | 1.0-5.0 | 80×80 | 2.5-6.0 | 135×135 | 4.0-14.0 | 400×400 | 8.0-25.0 |
40×40 | 1.0-6.0 | 85×85 | 2.5-6.0 | 140×140 | 4.0-8.0 | 450×450 | 8.0-25.0 |
Size chart of mild steel square tube
Size | Wall thickness | Size | Wall thickness | Size | Wall thickness | Size | Wall thickness |
mm | mm | mm | mm | mm | mm | mm | mm |
10×10 | 0.6-0.8 | 42×42 | 1.2-6.0 | 90×90 | 2.5-6.0 | 150×150 | 4.0-8.0 |
12×12 | 0.6-0.8 | 45×45 | 1.2-6.0 | 95×95 | 2.5-6.0 | 160×160 | 4.0-8.0 |
13×13 | 0.6-2.0 | 48×48 | 1.2-6.0 | 100×100 | 2.5-6.0 | 180×180 | 4.0-8.0 |
15×15 | 0.7-2.0 | 50×50 | 1.5-6.0 | 105×105 | 2.5-6.0 | 200×200 | 5.0-10.0 |
16×16 | 0.7-2.0 | 55×55 | 1.5-6.0 | 110×110 | 3.0-6.0 | 220×220 | 8.0-25.0 |
20×20 | 1.0-3.0 | 60×60 | 1.5-6.0 | 115×115 | 3.0-6.0 | 250×250 | 8.0-25.0 |
25×25 | 1.0-3.0 | 65×65 | 2.0-6.0 | 120×120 | 3.0-6.0 | 280×280 | 8.0-25.0 |
30×30 | 1.2-4.0 | 70×70 | 2.0-6.0 | 125×125 | 3.0-6.0 | 300×300 | 8.0-25.0 |
35×35 | 1.0-4.0 | 75×75 | 2.0-6.0 | 130×130 | 3.0-6.0 | 350×350 | 8.0-25.0 |
38×38 | 1.0-5.0 | 80×80 | 2.5-6.0 | 135×135 | 4.0-14.0 | 400×400 | 8.0-25.0 |
40×40 | 1.0-6.0 | 85×85 | 2.5-6.0 | 140×140 | 4.0-8.0 | 450×450 | 8.0-25.0 |
The manufacturing process of mild steel square tube
Uncoiling --- Flattening --- Shearing and butt welding --- Circle shearing --- Loop storing--- Roll forming --- High-frequency welding --- Removal of burrs --- Water cooling --- Forming --- Non-destrictive inspection --- Cutting off --- Corrosion-resistant coating --- Inspection --- Marking ---Packing and warehousing
The manufacturing process of mild steel square tube
Uncoiling --- Flattening --- Shearing and butt welding --- Circle shearing --- Loop storing--- Roll forming --- High-frequency welding --- Removal of burrs --- Water cooling --- Forming --- Non-destrictive inspection --- Cutting off --- Corrosion-resistant coating --- Inspection --- Marking ---Packing and warehousing
International standard of mild steel square tube
EN 10210:S235JRH,S355J2H,S355NH,S355J0H
EN 10219:S235JRH,S355J2H,S355NH,S355J0H
ASTM A500:Gr.A,Gr.B,Gr.C
International standard of mild steel square tube
EN 10210:S235JRH,S355J2H,S355NH,S355J0H
EN 10219:S235JRH,S355J2H,S355NH,S355J0H
ASTM A500:Gr.A,Gr.B,Gr.C
Application of mild steel square tube
Energy and industry
Automotive manufacturing
Offshore and shipbuilding
Home appliances
Architecture and construction
Medical equipment manufacturing
Application of mild steel square tube
Energy and industry
Automotive manufacturing
Offshore and shipbuilding
Home appliances
Architecture and construction
Medical equipment manufacturing
