Selecting the right stainless steel pipe material is critical for system reliability, safety, and lifecycle cost control. Common grades 304, 316L, 321, and Duplex 2205 serve different industrial applications. Grade 304 offers good general-purpose corrosion resistance for water systems and food processing but is vulnerable to chlorides. Grade 316L, with added molybdenum, provides superior resistance to pitting and crevice corrosion in marine and chemical environments. Grade 321, stabilized with titanium, excels in high-temperature applications by reducing sensitization risks. Duplex 2205 combines high yield strength with excellent chloride stress-corrosion cracking resistance for demanding conditions. Material selection must balance operating environment, temperature, pressure, mechanical loads, and welding requirements against initial investment. Choosing an inappropriate grade can lead to premature failure or unnecessary expenditure.
Stainless steel pipes come in different grades to meet specific requirements for corrosion resistance, mechanical strength, temperature performance, and fabrication. Among the most widely used options—304, 316L, 321, and Duplex 2205—each offers different advantages for industrial piping systems.
Quick Comparison Table
Grade | Key Composition | Main Advantages | Typical Applications | Key Limitation |
|---|---|---|---|---|
304 | ~18% Cr, ~8% Ni | Good corrosion resistance in mild environments; excellent formability; good weldability; lower cost | Food processing, water supply, building services, kitchen equipment, general piping | Limited resistance to chloride pitting/crevice corrosion |
316L | Cr, Ni, 2–3% Mo; low carbon (≤0.03%) | Improved chloride corrosion resistance vs. 304; good weldability; reduced sensitization risk | Marine equipment, pharmaceutical, chemical processing, moderately corrosive media | Not immune to seawater corrosion |
321 | Austenitic, stabilized with Ti | Resistance to sensitization during high-temperature exposure; good weldability | Exhaust systems, heat exchangers, thermal processing equipment | Not automatically best for every high-temperature application |
2205 | ~22% Cr, ~5% Ni, ~3% Mo, N | High yield strength; strong pitting/crevice resistance; good chloride SCC resistance | Offshore oil & gas, desalination, chemical processing, marine engineering | Higher cost; demanding welding controls; temperature limitations |
1. Stainless Steel 304 Pipes: Versatile and Cost-Effective
One of the most widely used austenitic stainless steels. Contains approximately 18% chromium and 8% nickel—providing good corrosion resistance in many general-purpose environments.
Key advantages:
Good corrosion resistance in ordinary atmospheric and many indoor environments
Excellent formability and generally good weldability
Smooth surface suitable for cleanliness-critical applications
Relatively low material costs compared with more highly alloyed grades
Common applications: food processing equipment, water supply systems, building services, kitchen equipment, general industrial piping.
Limitation: limited resistance to chloride-induced pitting and crevice corrosion—may not suit seawater systems or high-chloride environments.
2. Stainless Steel 316L Pipes: Enhanced Corrosion Resistance
Low-carbon austenitic stainless steel containing chromium, nickel, and typically 2–3% molybdenum. Molybdenum improves resistance to pitting and crevice corrosion in many chloride-containing environments.
Low carbon content (≤0.03%) reduces the risk of sensitization during welding under certain conditions.
Key advantages:
Improved chloride-related corrosion resistance vs. 304 in many environments
Good weldability and fabrication performance
Suitable for many chemical processing and hygienic applications
Reduced weld-related sensitization risk when appropriate procedures are followed
Typical applications: marine equipment, pharmaceutical production, chemical processing plants, industrial piping exposed to moderately corrosive media.
Limitation: not immune to seawater corrosion—performance depends on chloride concentration, temperature, flow conditions, surface condition, and design details.
3. Stainless Steel 321 Pipes: Designed for Elevated-Temperature Service
Austenitic stainless steel stabilized with titanium. This addition helps prevent chromium carbide precipitation during certain thermal exposures—reducing the risk of intergranular corrosion.
Corrosion resistance similar to 304 in many ordinary environments—but stabilization makes it useful for selected elevated-temperature applications.
Key advantages:
Improved resistance to sensitization during certain high-temperature exposures
Good weldability when suitable procedures are used
Useful mechanical properties for many thermal applications
Suitability for selected applications involving repeated heating and cooling
Typical applications: exhaust systems, heat exchangers, thermal processing equipment, industrial piping exposed to elevated temperatures.
Limitation: not automatically the best choice for every high-temperature application—evaluate operating temperature, exposure duration, oxidation resistance, thermal cycling, and applicable design requirements.
4. Duplex Stainless Steel 2205 Pipes: High Strength and Corrosion Resistance
Combines austenitic and ferritic microstructures—giving a distinctive balance of strength and corrosion resistance. Composition typically includes approximately 22% chromium, 5% nickel, 3% molybdenum, and nitrogen.
Compared with 304 and 316L, it generally provides significantly higher yield strength and better resistance to chloride-induced stress corrosion cracking.
Key advantages:
High mechanical strength—potentially allowing reduced wall thickness where engineering calculations permit
Strong resistance to pitting and crevice corrosion in many chloride-containing environments
Good resistance to chloride-induced stress corrosion cracking
Suitability for demanding industrial and offshore applications
Choosing between 304, 316L, 321, and Duplex 2205 stainless steel pipes requires understanding their chemical composition, corrosion resistance, mechanical strength, temperature performance, and fabrication requirements. Each grade is designed for different industrial needs—they are not interchangeable in every application.
Comparison Table: 304 vs. 316L vs. 321 vs. 2205
Property | 304 | 316L | 321 | Duplex 2205 |
|---|---|---|---|---|
Steel type | Austenitic | Austenitic | Austenitic, titanium-stabilized | Duplex |
Molybdenum | Generally none intentionally added | Typically 2–3% | Generally none intentionally added | Typically around 3% |
Carbon content | Usually ≤0.08% | Usually ≤0.03% | Usually ≤0.08% | Generally low; confirm specification |
General corrosion resistance | Good | Good to very good | Good | Very good in many demanding environments |
Chloride pitting resistance | Limited in aggressive conditions | Better than 304 in many environments | Generally similar to 304 | Generally better than 304 and 316L |
Yield strength | Standard austenitic range | Standard austenitic range | Standard austenitic range | Significantly higher |
High-temperature consideration | Application-dependent | Application-dependent | Useful for selected elevated-temperature service | Requires attention to temperature limits |
Fabrication | Generally straightforward | Generally straightforward | Requires suitable procedures | Requires tighter welding controls |
Typical applications | General piping, food equipment | Chemical and marine-related piping | Heat exchangers and thermal equipment | Offshore, desalination, demanding chemical service |
General comparisons, not design values—verify exact composition and mechanical properties against applicable material specification and product form.
1. Chemical Composition and Metallurgical Characteristics
Element | Contribution |
|---|---|
Chromium | Corrosion resistance (protective oxide layer) |
Nickel | Stability of austenitic structure |
Molybdenum | Resistance to pitting and crevice corrosion in chloride environments |
Grade | Key Composition |
|---|---|
304 | ~18% Cr, ~8% Ni—good balance of corrosion resistance, formability, and cost |
316L | Cr, Ni, 2–3% Mo; low carbon—reduces sensitization risk during welding |
321 | Titanium-stabilized—reduces chromium carbide precipitation during elevated-temperature exposure |
2205 | ~22% Cr, ~5% Ni, ~3% Mo, N—mixed austenitic-ferritic structure for high strength and corrosion resistance |
2. Corrosion Resistance in Different Environments
Grade | Corrosion Performance | Key Limitation |
|---|---|---|
304 | Good in indoor, atmospheric, general industrial environments | Limited resistance to chloride pitting/crevice corrosion—less suitable for marine applications |
316L | Better pitting/crevice resistance due to molybdenum; suitable for chemical processing, coastal facilities, moderate chloride exposure | Can still corrode in aggressive seawater or concentrated chloride environments |
321 | Corrosion resistance broadly comparable to 304 in ordinary environments | Main advantage is stabilization against sensitization—not substantially improved chloride resistance |
2205 | Strong resistance to pitting, crevice corrosion, and chloride-induced stress corrosion cracking in demanding environments | Requires attention to temperature limits and fabrication controls |
No stainless steel grade is universally corrosion-proof. Consider chemical concentration, temperature, exposure duration, surface condition, and operating conditions.
3. Mechanical Strength and Temperature Performance
Grade | Strength & Temperature Consideration |
|---|---|
304, 316L, 321 | Generally similar strength characteristics—exact properties depend on product form, manufacturing process, and material condition |
2205 | Substantially higher yield strength than conventional austenitic grades—may allow thinner pipe walls where calculations and codes permit |
321 | Titanium stabilization helps reduce sensitization risks during certain thermal exposures—suitability depends on temperature, exposure time, oxidation conditions, and design requirements |
2205 | Requires particular attention to temperature limits—prolonged exposure to unsuitable temperatures can adversely affect microstructure and mechanical properties |
4. Weldability, Fabrication, and Maintenance
Grade | Fabrication Consideration |
|---|---|
304, 316L | Generally good weldability; widely used in fabricated piping systems; 316L useful when low carbon is desirable for welded corrosion-resistant equipment |
321 | Can be welded successfully—select suitable procedures and filler materials per application |
2205 | Requires stricter control of welding heat input, interpass temperature, and cooling conditions to maintain austenite-ferrite balance; incorrect practices can reduce corrosion resistance or toughness |
Maintenance requirements depend on actual service environment. Choosing a grade with appropriate corrosion resistance reduces the risk of leakage, unplanned shutdowns, and premature replacement.
Selecting the right stainless steel pipe requires more than comparing prices or corrosion resistance. The best choice depends on operating environment, temperature, pressure, mechanical requirements, fabrication methods, and expected service life.
304, 316L, 321, and Duplex 2205 each offer specific advantages. Understanding these differences helps engineers, contractors, and purchasing professionals make cost-effective decisions.
Quick Selection Guide
Grade | Best Suited For | Key Advantage | Key Limitation |
|---|---|---|---|
304 | General-purpose applications | Good balance of corrosion resistance, weldability, formability, and cost | Limited resistance to chloride pitting/crevice corrosion |
316L | Chloride exposure and chemical processing | Molybdenum improves pitting/crevice resistance; low carbon reduces sensitization risk | Not immune to seawater or highly concentrated chlorides |
321 | Elevated-temperature service | Titanium stabilization reduces sensitization risk during certain thermal exposures | Not automatically superior under every thermal condition |
2205 | High strength and demanding corrosive environments | Significantly higher yield strength; good chloride corrosion resistance | Higher cost; requires careful welding and temperature control |
1. Choose 304 for General-Purpose Applications
Good balance of corrosion resistance, weldability, formability, and cost. Suitable where exposure to aggressive chemicals and high chloride concentrations is limited.
Common Applications | Consideration |
|---|---|
Food processing equipment, commercial kitchens | Cleanliness and mild corrosion conditions |
General water supply, building services | Ordinary atmospheric environments |
Industrial piping in relatively mild environments | Non-aggressive media |
Storage tanks for compatible products | Mild corrosion conditions |
Economical choice for projects not requiring enhanced chloride resistance. May experience pitting or crevice corrosion in environments with significant chlorides—assess whether a more corrosion-resistant grade is necessary for coastal facilities or chemical processing.
2. Choose 316L for Chloride Exposure and Chemical Processing
Molybdenum improves resistance to pitting and crevice corrosion in many chloride-containing environments. Low carbon content helps reduce sensitization risks during welding under appropriate conditions.
Typical Applications | Consideration |
|---|---|
Marine equipment, coastal industrial facilities | Moderate chloride exposure |
Chemical processing pipelines | Corrosive media |
Pharmaceutical and hygienic process systems | Cleanliness and corrosion resistance |
Industrial equipment exposed to corrosive liquids | Moderate corrosion conditions |
Compared with 304: often provides better corrosion resistance in chloride-containing environments. Not immune to corrosion in seawater or highly concentrated chloride solutions. For particularly aggressive conditions, Duplex 2205 or another specialized alloy may be more appropriate.
3. Choose 321 for Elevated-Temperature Service
Stabilized with titanium—helps reduce the risk of sensitization during certain elevated-temperature exposures. A candidate for applications involving prolonged heating or thermal cycling.
Common Applications | Consideration |
|---|---|
Industrial exhaust systems | Elevated-temperature exposure |
Selected heat exchangers | Thermal cycling |
Thermal processing equipment | Prolonged heating |
Piping systems operating at elevated temperatures | Temperature-dependent performance |
Evaluate: actual operating temperature, exposure duration, thermal cycling, oxidation conditions, and applicable design codes. 321 is not automatically superior to other grades under every thermal condition.
4. Choose Duplex 2205 for High Strength and Demanding Corrosive Environments
Combines high mechanical strength with good resistance to several forms of corrosion. Yield strength is generally significantly higher than 304 and 316L—useful for demanding mechanical and environmental conditions.
Typical Applications | Consideration |
|---|---|
Offshore oil and gas piping systems | Demanding marine environments |
Desalination plants, seawater-related equipment | Chloride-containing media |
Chemical processing facilities | Corrosive conditions |
Industrial systems exposed to chloride-containing media | High chloride environments |
Higher strength may allow reduced wall thickness in some designs—potentially lowering material weight and cost. Any wall-thickness reduction must be supported by engineering calculations and applicable code requirements.
Considerations: generally higher cost than 304; requires careful welding and fabrication controls; operating temperature must remain within suitable limits to preserve mechanical properties and corrosion resistance.
5. Consider Total Cost Rather Than Purchase Price Alone
A lower-cost pipe may require more frequent maintenance or earlier replacement if it cannot withstand the operating environment.
Cost Factor | What to Consider |
|---|---|
Initial costs | Purchase and transportation |
Installation | Welding expenses |
Maintenance | Inspection and upkeep requirements |
Service life | Expected life and replacement frequency |
Failure costs | Downtime and potential failure-related costs |
Examples:
304 — most economical for general indoor piping
316L or Duplex 2205 — better long-term value in corrosive environments
321 — appropriate when stabilization characteristics address specific high-temperature requirements
6. Confirm Standards and Technical Specifications Before Purchasing
Before placing an order, verify:
Required stainless steel grade
Pipe dimensions and wall thickness
Manufacturing method
Applicable product standard
Whether seamless or welded pipes are required
Specific inspection procedures
Material test certificates or additional testing
Selecting the correct stainless steel pipe material is only part of a successful procurement process. Buyers must also verify product standards, dimensional specifications, manufacturing methods, and quality inspection requirements. These factors ensure pipes meet project requirements for corrosion resistance, mechanical strength, pressure performance, and service life.
For 304, 316L, 321, and Duplex 2205, the applicable standard depends on material grade, manufacturing process, product form, and intended application.
Common Stainless Steel Pipe Standards
Standard | Scope | Applicable Grades |
|---|---|---|
ASTM A312/A312M | Seamless, straight-seam welded, and heavily cold-worked austenitic stainless steel pipes for general corrosive and high-temperature service | TP304, TP316L, TP321 (per applicable edition) |
ASTM A790/A790M | Seamless and welded ferritic/austenitic stainless steel pipe | Duplex grades such as UNS S32205 and S31803 (related but not identical requirements) |
ASTM A999/A999M | General requirements for alloy and stainless steel pipe | — |
ASTM A923 | Evaluates presence of detrimental intermetallic phases in certain duplex stainless steels | — |
Confirm the exact specification, grade designation, and applicable edition before ordering. A material grade alone does not establish every manufacturing, testing, or dimensional requirement.
Key Purchasing Specifications
Specification | What to Confirm |
|---|---|
Material grade | 304, 316L, 321, or Duplex 2205 designation (e.g., UNS S32205) |
Pipe dimensions | Outside diameter, wall thickness, required length |
Manufacturing method | Seamless or welded—acceptable or specifically required |
Product standard | Applicable ASTM or other recognized standard |
Surface finish | Required surface condition (especially for hygienic/specialized applications) |
End preparation | Plain ends, beveled ends, or other required configurations |
Inspection requirements | Necessary tests, inspection scope, documentation |
Quantity & delivery | Order quantity, packaging, delivery destination |
Clear specifications help suppliers provide accurate quotations and reduce misunderstandings.
Quality Inspection and Testing
Inspection | Purpose |
|---|---|
Chemical composition analysis | Verifies required alloying elements; distinguishes grades by Cr, Ni, Mo, C, and other elements |
Mechanical testing | Tensile testing and other specified tests—results must comply with product specification |
Dimensional inspection | Checks OD, wall thickness, length, and other dimensions for piping design compatibility |
Visual & surface inspection | Identifies visible defects, damage, and unacceptable surface conditions; additional examination may be required for critical applications |
Nondestructive testing (NDT) | Ultrasonic, radiographic, or other methods per product standard and purchase order |
Material documentation | Material test reports, heat numbers, grade identification, traceability records; additional corrosion testing or duplex-specific examinations may be necessary |
Why Quality Assurance Matters
Insufficient inspection can result in:
Incorrect material grades
Dimensional problems
Inadequate corrosion resistance
Premature failures
These issues may increase maintenance expenses and interrupt industrial operations.
Grade | Key Quality Focus |
|---|---|
Duplex 2205 | Specified material condition, welding controls, verification of microstructure or corrosion performance |
316L and other austenitic grades | Chemical composition, heat treatment, welding-related requirements |
Selecting the right stainless steel pipe material ensures corrosion resistance, mechanical reliability, and long-term cost efficiency. However, buyers sometimes focus only on purchase price or general material properties while overlooking important operating conditions. These mistakes can lead to premature corrosion, unexpected maintenance expenses, and reduced service life.
304, 316L, 321, and Duplex 2205 have different characteristics. Understanding their limitations helps engineers and procurement professionals make better decisions.
Common Mistakes & Solutions at a Glance
Mistake | Risk | How to Avoid |
|---|---|---|
1. Choosing 304 for highly corrosive environments | Pitting/crevice corrosion in chloride environments | Evaluate chloride concentration; consider 316L or 2205 |
2. Assuming 316L is completely corrosion-proof | Localized corrosion in warm seawater/concentrated chlorides | Assess chemistry, temperature, flow; compare with 2205 for demanding conditions |
3. Selecting 321 without checking temperature requirements | Unsuitable specification for actual thermal conditions | Confirm min/max temperatures, exposure duration, design code requirements |
4. Ignoring Duplex 2205 fabrication requirements | Reduced microstructure, toughness, corrosion resistance | Use qualified procedures; control heat input/interpass temperature |
5. Comparing by purchase price alone | Higher lifecycle costs from maintenance/replacement | Compare total lifecycle cost—not just initial price |
6. Overlooking standards & quality inspection | Dimensional/quality/documentation problems | Confirm grade, dimensions, standard, testing, documentation |
1. Choosing 304 for Highly Corrosive Environments
304 offers good general corrosion resistance, weldability, and relatively economical price—but does not provide sufficient resistance for every corrosive environment.
Common mistake: Using 304 in seawater systems, coastal installations, or industrial environments with significant chloride exposure without evaluating corrosion risks. Chlorides can cause pitting and crevice corrosion, particularly under unfavorable conditions.
How to avoid:
Identify chemicals and corrosive substances in contact with the pipe
Evaluate chloride concentration, temperature, and exposure duration
Consider 316L or Duplex 2205 when improved chloride corrosion resistance is required
Consult a qualified materials engineer for aggressive or uncertain conditions
Select the appropriate grade according to actual environment—not general assumptions.
2. Assuming 316L Is Completely Resistant to Corrosion
316L contains molybdenum—improving resistance to pitting and crevice corrosion compared with 304 in many chloride-containing environments. However, this does not make it immune to corrosion.
In warm seawater, concentrated chloride solutions, or stagnant conditions that encourage crevice formation, 316L may still experience localized corrosion.
How to avoid:
Evaluate chemical composition, temperature, flow conditions, and potential for deposits or crevices
For demanding chloride environments, compare 316L with Duplex 2205 or other suitable corrosion-resistant alloys
Base final choice on specific operating conditions and relevant engineering requirements
3. Selecting 321 Without Checking Temperature Requirements
321 is stabilized with titanium—helping reduce sensitization risks during certain elevated-temperature exposures. However, it is not automatically the best stainless steel for every high-temperature application.
Factors influencing material performance:
Operating temperature
Exposure duration
Thermal cycling
Oxidation
Mechanical loading
Choosing 321 solely because a system operates at high temperature may result in an unsuitable specification.
How to avoid:
Confirm minimum and maximum operating temperatures
Confirm expected service duration
Confirm applicable design-code requirements
Compare 321 with other potential materials based on actual service conditions—not temperature alone
4. Ignoring the Fabrication Requirements of Duplex 2205
Duplex 2205 offers high yield strength and good resistance to several forms of chloride-related corrosion. However, its performance depends on proper manufacturing and fabrication practices.
Incorrect practices that can negatively affect microstructure, toughness, and corrosion resistance:
Incorrect welding procedures
Excessive heat input
Unsuitable cooling conditions
Improper heat treatment
How to avoid:
Use qualified welding procedures appropriate for Duplex 2205
Control welding heat input and interpass temperature
Verify material condition and traceability
Follow applicable fabrication and inspection requirements
Consider additional fabrication controls when calculating total project costs.
5. Comparing Materials by Purchase Price Alone
Another common mistake: choosing the cheapest stainless steel pipe without evaluating expected service life.
While 304 often has a lower initial material cost than 316L or Duplex 2205, it may not provide the best overall value in a corrosive environment.
Material failure can result in:
Replacement costs
Maintenance expenses
Production downtime
Potential safety risks
How to avoid:
Compare initial purchase price with installation costs, inspection requirements, maintenance needs, expected service life, and replacement risks
A higher-priced material may offer better lifecycle value if it significantly reduces corrosion-related problems
6. Overlooking Standards and Quality Inspection
Even the correct material grade may fail to meet project requirements if the supplied pipe has incorrect dimensions, an unsuitable manufacturing method, or inadequate documentation.
Buyers sometimes overlook:
Applicable product standard
Wall thickness
Inspection requirements
Material test reports
How to avoid:
Before ordering, confirm material grade, pipe dimensions, manufacturing method, applicable standard, testing scope, and required material documentation
ASTM A312/A312M — commonly used for austenitic stainless steel pipes
ASTM A790/A790M — covers duplex stainless steel pipes

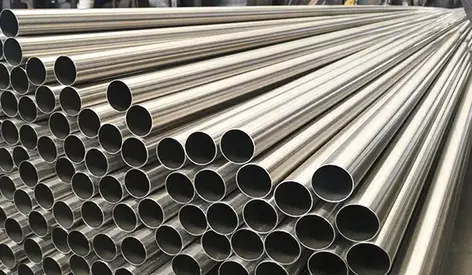

Supplies ASTM A312/A790 stainless steel pipes in grades 304, 316L, 321, and Duplex 2205 for oil and gas, chemical, marine, and food processing applications. Grade 304 suits general-purpose systems; 316L offers enhanced chloride resistance; 321 is stabilized for elevated-temperature service; Duplex 2205 combines high yield strength with superior corrosion resistance for demanding offshore and desalination projects. We provide seamless and welded options with full MTRs and heat-number traceability to support export compliance. Global shipping coordination includes protective packaging, container loading, and export documentation. Buyers should confirm grade, OD, wall thickness, manufacturing method, inspection scope, and delivery destination when requesting a quotation to ensure accurate product matching and efficient international delivery.
Choosing the right stainless steel pipe grade balances corrosion resistance, mechanical strength, temperature performance, and total lifecycle cost. Grade 304 suits general-purpose piping in mild environments. Grade 316L, with added molybdenum, offers improved resistance to chloride-induced pitting and crevice corrosion for chemical and marine-related applications. Grade 321, stabilized with titanium, is suitable for selected elevated-temperature services where sensitization control is required. Duplex 2205 provides higher yield strength and strong resistance to chloride-related corrosion, making it appropriate for demanding offshore, desalination, and chemical processing systems, provided welding and fabrication limits are observed.
FAQ:
FAQ 1: What Is the Main Difference Between 304 and 316L Stainless Steel Pipes?
316L contains molybdenum and has a lower carbon limit, generally providing better resistance to chloride-related pitting corrosion than 304.
FAQ 2: Is 316L Stainless Steel Better Than 321 for High-Temperature Applications?
Not necessarily. 321 is titanium-stabilized and may be more suitable for certain elevated-temperature conditions, while the best choice depends on the temperature range, exposure duration, and design requirements.
FAQ 3: Is Duplex 2205 Stronger Than 304 and 316L Stainless Steel?
Yes. Duplex 2205 generally has significantly higher yield strength than 304 and 316L, making it suitable for applications requiring greater strength and resistance to certain forms of corrosion.
FAQ 4: Which Stainless Steel Pipe Grade Is Best for Seawater Applications?
Duplex 2205 may be suitable for many seawater applications because of its improved resistance to chloride-induced corrosion and stress corrosion cracking. However, the final choice depends on seawater conditions, temperature, flow velocity, crevice risks, and design requirements.
FAQ 5: Which Stainless Steel Pipe Grade Is the Most Cost-Effective?
304 is often the most economical option for general-purpose applications. However, 316L, 321, or Duplex 2205 may offer better overall value when their specific properties reduce maintenance, corrosion damage, or replacement costs.
About Us / News / Product / Project / Quality Assurance / Service / Contact Us
