Butt Welding (BW) Vs. Socket Welding (SW) Pipe Fittings: Which Connection Method Should Be Chosen in High-pressure Pipeline Systems?

In any industrial piping system, overall performance relies heavily on the connection method. A weak joint can compromise the entire network, especially in high-pressure, high-temperature, and corrosive environments. Therefore, selecting the right pipe fitting connection is a critical engineering decision that directly impacts safety and reliability.

Among modern methods, Butt Welding (BW) and Socket Welding (SW) are the most common. Butt Welding is ideal for large-diameter, high-pressure pipelines, offering maximum strength and smooth internal flow through full-penetration welds. Socket Welding is typically used for smaller-diameter systems, allowing for easier installation in compact spaces.

What Are Butt Welding (BW) Pipe Fittings?

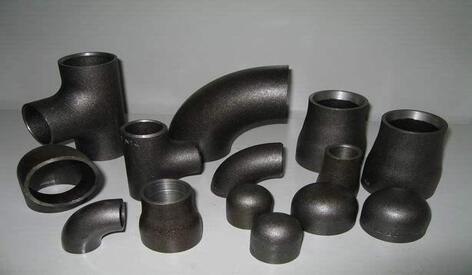

Butt welding (BW) pipe fittings are high-performance components widely used in industrial piping systems. Manufactured according to standards like ASME B16.9, they are designed to be joined end-to-end with pipes using a full-penetration welding process. This creates a continuous, seamless flow path with exceptional structural strength and sealing performance.

Key Advantages of BW Fittings

The primary benefit of BW fittings is their superior mechanical integrity. The full-penetration weld creates a strong metallurgical bond, allowing the joint to withstand high internal pressure, thermal cycling, and mechanical stress. Additionally, the smooth internal bore minimizes turbulence and pressure loss, making them highly efficient for transporting oil, gas, and chemicals. They are the preferred choice for critical, high-temperature, and high-pressure environments.

Limitations and Applications

Despite their durability, BW fittings require precise edge preparation, skilled welders, and rigorous non-destructive testing (such as RT or UT) to ensure quality. Installation is generally more time-consuming compared to socket welding. They are widely used in oil and gas transmission, petrochemical processing, power generation, and offshore engineering projects where long-term safety and reliability are non-negotiable.

What Are Socket Welding (SW) Pipe Fittings?

Socket welding (SW) pipe fittings are essential components designed for small-diameter (typically NPS 2 or smaller), high-pressure, and moderate-temperature piping systems. Manufactured according to standards like ASME B16.11, they connect pipes by inserting the pipe end into a recessed socket and securing it with an external fillet weld. Common configurations include forged steel elbows, tees, couplings, and unions.

Key Advantages of SW Fittings

The primary benefit of socket welding is ease of installation. The socket design automatically aligns the pipe, eliminating the need for complex edge beveling or the precise fit-up required in butt welding. This makes SW fittings highly efficient for compact spaces and complex layouts, significantly reducing labor costs and welding time. They provide reliable sealing and sufficient structural strength for moderate to high-pressure service conditions.

Limitations and Applications

Despite their convenience, SW fittings have limitations. A small internal crevice between the pipe and the fitting shoulder can trap fluids, potentially leading to corrosion or stagnation. Additionally, stress concentrations at the fillet weld make them less suitable for severe cyclic loading or extreme temperature fluctuations. They are widely used in small-bore process piping, steam and condensate lines, hydraulic systems, and chemical processing plants where installation speed and space constraints are critical factors.

BW vs. SW Pipe Fittings: Key Differences and Performance Comparison

Butt Welding (BW) and Socket Welding (SW) are the two primary connection methods in industrial piping systems. While both are used with carbon, stainless, and alloy steel, their structural and mechanical differences dictate their specific applications.

In practice, BW fittings are the preferred choice for large-diameter, critical infrastructure where maximum strength, smooth flow, and long-term reliability are non-negotiable. Conversely, SW fittings provide a highly efficient, cost-effective solution for small-bore piping (typically NPS 2 or smaller) where installation speed and space constraints are the primary priorities. Selecting the right method requires balancing these performance trade-offs against specific project pressure requirements and operational expectations.

BW vs. SW: Which Connection Method is Better for High-Pressure Pipelines?

In high-pressure pipeline systems, the choice between Butt Welding (BW) and Socket Welding (SW) directly impacts safety, reliability, and long-term performance. While both methods have their place in industrial piping, Butt Welding (BW) is overwhelmingly preferred for critical high-pressure mainlines due to its superior structural integrity.

For critical high-pressure infrastructure, BW fittings are the superior choice. Their seamless, full-penetration weld structure offers unmatched durability, leak resistance, and flow efficiency, significantly reducing the risk of catastrophic failure. While SW fittings provide installation convenience for small-bore, high-pressure auxiliary lines, they are not recommended for main high-pressure pipelines where long-term safety and structural integrity are non-negotiable.

Recommended BW & SW Pipe Fittings and Global Shipping Services

We provide a comprehensive range of high-quality Butt Welding (BW) and Socket Welding (SW) pipe fittings to ensure safe and reliable industrial piping systems. Our BW fittings (ASME B16.9) are engineered for high-pressure and high-temperature mainlines, while our SW fittings (ASME B16.11) are ideal for compact, small-bore applications. Available in diverse materials, including carbon steel (ASTM A234 WPB, A105), stainless steel (ASTM A403, A182), and alloy steel, our products are tailored to meet specific project requirements.

Quality is guaranteed through rigorous inspections, including PMI, hydrostatic testing, and NDT (UT/RT), with third-party certifications available. We also offer custom manufacturing services for non-standard sizes, special end preparations, and anti-corrosion coatings. Backed by efficient global logistics, we provide seaworthy packaging, complete export documentation, and timely container or bulk shipments to North America, Europe, the Middle East, Asia, and beyond, delivering long-term value for projects worldwide.

Conclusion: Selecting the Right BW vs. SW Pipe Fittings

Choosing between Butt Welding (BW) and Socket Welding (SW) pipe fittings is a critical engineering decision that directly impacts the safety and efficiency of industrial piping systems. BW fittings are the superior choice for large-diameter, high-pressure, and high-temperature mainlines. Their full-penetration welds create a seamless, continuous metal structure, offering unmatched strength and smooth internal flow.

Conversely, SW fittings provide a compact and installation-friendly solution. Their socket-and-fillet weld design allows for faster alignment, making them ideal for small-bore piping, instrumentation lines, and auxiliary systems with limited space.

There is no universal "best" option; the optimal choice depends on specific factors like pipe size, operating pressure, and long-term maintenance needs. While SW fittings offer initial installation convenience, BW fittings generally deliver better lifecycle performance and reliability in critical, demanding service conditions. By carefully evaluating these technical requirements, engineers can ensure optimal safety and durability for their pipeline projects.

FAQ:

(1) Which is stronger, butt welding or socket welding?

Comparison of structural strength and pressure resistance

(2) Why are butt weld fittings preferred in large-diameter pipelines?

Advantages of full-penetration welds

(3) Can socket-weld fittings be used in high-pressure systems?

Pressure limitations and suitable applications

(4) Which fitting type is easier to install?

Installation efficiency comparison between BW and SW
