Cold Bending Vs. Hot Bending Steel Pipes: Preventing Wall Thinning And Ovality

Steel pipe bending requires balancing cost and quality to prevent geometric defects like wall thinning and ovality. Fabricators must choose between cold bending, a fast and cost-effective room-temperature mechanical process, and hot bending, which uses heat to increase plasticity and enable tighter radii.

Selecting the wrong method can cause structural failure, reduced pressure capacity, and costly rework. Industry standards like ASME B31.1 and PFI ES-24 mandate strict limits: ovality should generally not exceed 8%, and cold-formed bends with wall thinning over 25% require mandatory heat treatment.

This guide compares cold and hot bending mechanics, outlines practical selection criteria, and highlights defect prevention strategies. Whether working with mild steel or high-strength API 5L pipeline grades, understanding these processes ensures code-compliant, durable results. By applying proper controls and choosing the right technique for the application, engineers can avoid premature fatigue failures and deliver safe, high-quality pipe geometries without exceeding project budgets.

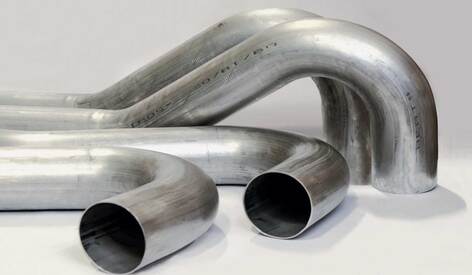

Cold Bending—Process, Advantages, and Defect Control

Cold bending shapes steel pipes at room temperature using mechanical force, with common methods including rotary draw, ram, and roll bending. It is widely favored for its high efficiency, cost-effectiveness, excellent dimensional accuracy, and preservation of the original mill finish without oxidation.

However, cold bending carries risks of wall thinning (at the outer radius) and ovality (cross-section flattening). To control these defects, internal mandrels—especially articulated ball mandrels for tight radii—are essential for supporting the inner wall and maintaining circularity. Proper tooling selection, correct mandrel positioning, and adequate lubrication are also critical to prevent wrinkling and reduce friction. Pipes with high diameter-to-wall-thickness (D/t) ratios are particularly susceptible to distortion and require mandatory mandrel support.

Cold bending is ideal for structural frameworks, HVAC systems, and low-to-medium pressure pipelines using mild steels. However, for high-strength grades, thick-walled pipes, or extremely tight radii, hot bending is often the superior alternative to prevent excessive thinning and ensure structural integrity.

Hot Bending—Process, Advantages, and Quality Considerations

Hot bending heats steel pipes to 850°C–1100°C to increase plasticity and reduce yield strength. Induction bending is the most precise method, heating a localized zone continuously. This process excels at controlling defects: it minimizes wall thinning, maintains ovality below 5%, and enables tight bend radii (3D or 2.5D) that cold bending cannot achieve. It also helps relieve residual stresses.

However, hot bending requires meticulous process controls. Temperature must be strictly maintained (±10°C) to prevent cracking or grain growth. Post-bend heat treatment is often necessary to restore mechanical properties and manage the heat-affected zone (HAZ). Controlled cooling rates and internal mandrel support are also critical to prevent thermal stresses and maintain circularity.

Hot bending is the preferred choice for thick-wall pipes, high-strength grades (API 5L X70/X80), and critical high-pressure oil and gas systems. While it involves higher costs, longer production cycles, and requires specialized equipment, it delivers superior structural integrity for complex geometries and demanding applications where cold bending falls short.

Choosing the Right Method—Selection Criteria and Common Mistakes

Choosing the right steel pipe bending method requires balancing project requirements, material properties, and budget. Selecting the wrong approach can lead to costly rework, rejected parts, and schedule delays.

Key selection criteria include material grade, wall thickness, bend radius, and required tolerances. Mild steels (e.g., A53, A106) are ideal for cold bending, while high-strength grades (X70, X80+) require hot bending to prevent cracking and excessive thinning. Hot bending is also necessary for tight radii (≤5D), thick walls (>25mm), high diameter-to-wall-thickness (D/t > 30) ratios, and strict ovality limits (<5%). Conversely, cold bending is preferred for high-volume production and cost-sensitive projects due to its speed and lower energy costs.

Fabricators must also avoid common mistakes. Choosing based solely on upfront cost often leads to expensive rework if defects occur. Ignoring material ductility, overlooking the interaction between wall thickness and radius, and failing to define ovality tolerances before bending are frequent pitfalls. Additionally, poor process control and neglecting mandatory post-bend heat treatments can compromise structural integrity and violate industry codes.

Use the following decision matrix to guide your selection:

Product Recommendations and Shipping Information

To achieve code-compliant steel pipe bends with minimal wall thinning and ovality, selecting the right equipment and reliable logistics is essential. For cold bending, internal ball mandrels, wiper dies, and proper lubricants are critical for supporting the pipe wall and preventing wrinkling. Hot bending operations require advanced induction equipment with closed-loop temperature control (±10°C), ceramic heating blankets, and precision pyrometers to ensure uniform deformation. We also supply custom and standard finished bends (3D, 5D) in carbon and high-yield steels, guaranteed free of wrinkles and backed by EN 10204 / 3.1B Mill Test Certificates.

Our logistics ensure safe and timely delivery. Tooling and small fittings are packed in sturdy wooden boxes, while large finished bends are secured on pallets with PE stretch film to prevent oxidation. Standard carbon steel bends ship in 15–25 business days, while custom high-grade bends take 20–35 days. Located just 100 km from Tianjin Port, we offer efficient worldwide shipping, expedited options for emergencies, and volume discounts for bulk orders. All shipments include comprehensive documentation, including packing lists and compliance certificates.

Shipping & Lead Time Summary

Conclusion

Cold bending and hot bending are complementary methods for steel pipe fabrication. Cold bending is fast and cost-effective for mild steels and moderate walls, while hot bending is essential for high-strength grades (X70/X80), thick walls, and tight radii to minimize wall thinning and ovality.

Success requires a systematic selection process based on material grade, geometry, and code requirements (ASME B31.1, PFI ES-24). Fabricators must avoid common mistakes like choosing solely on cost, ignoring material ductility, or neglecting mandatory post-bend heat treatments, as these errors lead to rejected components and compromised structural integrity.

Quality outcomes depend on rigorous process control, including proper tooling, operator skill, and regular equipment calibration. Ultimately, whether cold or hot, applying the right method with strict adherence to industry standards ensures code-compliant, defect-free bends that fit correctly and perform reliably throughout their service life.

FAQ:

FAQ 1: Which bending method—cold or hot—reduces wall thinning more effectively?

Hot bending generally reduces wall thinning more effectively because heating increases material plasticity and allows for uniform deformation under lower stress. However, cold bending with mandrel internal support can also control thinning effectively for mild steels and standard applications. For high-strength grades (X70, X80) and tight-radius bends, hot bending is strongly preferred to prevent excessive thinning and maintain pressure integrity.

FAQ 2: What are the code-mandated limits for ovality in steel pipe bends?

Industry codes set specific limits for ovality to ensure structural integrity and fit-up. ASME B31.1 and PFI ES-24 typically recommend a maximum ovality of 8%. IBR (Indian Boiler Regulations) allows up to 10% for single-operation cold bends and 15% for hot-pressed bends. Exceeding these limits may require heat treatment or rejection of the bend. Always verify requirements with the applicable project code and designer approval.
