How To Calculate The Bending Radius of Pipe Elbow?

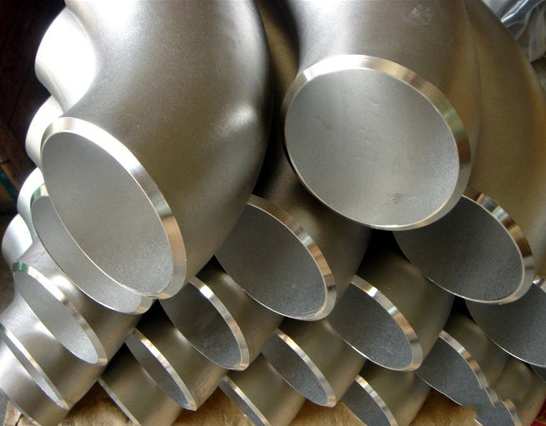

Pipe elbows are components in the pipeline system used to change the direction, flow velocity and flow of the pipeline. Common pipeline elbows have the following types:

1.45 degree elbow: the bending angle is 45 degrees, used for relatively small changes in direction;

2.90 degree elbow: the bending angle is 90 degrees, used for large-angle direction changes;

3.180 degree elbow: the bending angle is 180 degrees, used for turning back and reverse flow;

4. Elbows with various angles such as 30 degrees, 60 degrees, 120 degrees, 135 degrees, etc. can be selected and used according to different needs.

Calculation method of bending radius of pipe elbow:

Bending radius is one of the important parameters in the design of pipe elbows. It refers to the distance from the center line of the elbow to the end face of the elbow. It is usually expressed in multiples of the nominal diameter DN, such as 3D, 5D, 10D, etc. Among them, D is the nominal diameter of the pipe. The radius of a pipe elbow can be calculated by different methods, depending on the type of elbow and the level of detail of the calculation required. ‌

1. For ordinary elbows, the bending radius can be calculated by multiplying the diameter size by a coefficient. This coefficient is usually 1.5, that is, the bending radius is equal to the diameter size multiplied by 25.4, and then multiplied by 1.5. This method is suitable for the calculation of most ordinary elbows.

There are many actual classifications of elbows, which can be divided into long-radius elbows, short-radius elbows, and elbows with angles such as 45°, 90°, and 180°.

2.‌ For elbows with specific angles‌, such as 45°, 90°, etc., the calculation methods will be different.

For example, the bending radius of a 45° elbow can be calculated from the pipe diameter and bending angle. The specific formula is:

Bending radius = (pipe diameter × 0.577) / bending angle.

This formula is suitable for calculating the bending radius of an elbow at a specific angle‌.

3. For more complex calculations, such as calculating the blanking length or outer arc length of an elbow, more geometric and physical parameters are involved. For example, calculating the blanking length of an elbow requires considering factors such as the elbow center height, outer arc length, inner arc length, etc. These calculations are often used in manufacturing or precision engineering applications.

Things to note:

1. The number of elbows should not be too many, preferably within 3;

2. The bending angle of the elbow should be as small as possible to reduce pressure loss;

3. The location of the elbows should be consistent with the pipeline design plan to avoid too many or too few elbows, which will cause unnecessary impact on the system.

To sum up, the radius calculation method of pipe elbow varies according to the specific needs and the type of elbow. Ordinary elbows usually use a simple calculation method of multiplying the diameter size by a coefficient, while elbows with specific angles require more complex formulas to be calculated. In practical applications, the appropriate calculation method should be selected according to specific needs.
