Tack Welding Vs. Root Pass: Ensuring Full Penetration in LSAW Pipe Field Joints

In LSAW pipeline construction, field joint welding is critical for overall integrity. However, confusion between tack welding and root pass welding often leads to costly defects. Tack welding is a temporary method used solely to maintain pipe alignment and root gap before final welding; it provides no structural strength. Conversely, the root pass is the first permanent weld layer, serving as the foundation for full penetration and joint safety.

Executing the root pass correctly is essential to prevent leaks, ensure pressure resistance, and avoid defects like incomplete fusion. Achieving full penetration requires precise joint preparation, qualified welding procedures, and strict inspection standards. Misunderstanding the distinct functions of these two steps can compromise the entire pipeline.

Tack Welding in LSAW Pipe Field Joints

Tack welding is a fundamental, temporary step in the field assembly of LSAW Welded Steel Pipe. Its primary purpose is to secure pipe sections in the correct position during fit-up, maintaining precise alignment of the root gap, bevel angle, and centerline. Without tack welds, heavy pipe sections could shift due to handling or thermal expansion, compromising the joint's geometry.

By stabilizing the assembly, tack welding significantly improves welding efficiency. It eliminates the need for continuous manual adjustments, allowing welders to focus entirely on achieving proper fusion during the root pass and subsequent layers.

However, tack welds are strictly positional and provide no structural strength or pressure resistance. If poorly executed, they can introduce critical defects like cracks or slag inclusions into the final weld. Excessively large or improperly placed tacks can also interfere with root pass penetration and create stress concentration points. Therefore, industry standards mandate strict controls on tack weld size, length, and spacing.

In summary, while tack welding does not contribute to the pipeline's final strength, it is an essential prerequisite for high-quality construction. Proper execution ensures accurate alignment and stable assembly, directly influencing the success of full penetration welding and the overall reliability of the LSAW pipeline.

Root Pass in Pipeline Welding

The root pass is the most critical stage in LSAW pipeline field joint welding. As the first permanent weld layer, it fuses the pipe edges to form the structural foundation of the joint. Unlike temporary tack welds, the root pass is responsible for achieving complete full penetration through the pipe wall. Any defects at this stage can lead to severe issues, including leakage, reduced pressure capacity, and premature pipeline failure.

Executing a high-quality root pass requires precise control over joint geometry (root gap and bevel preparation) and strict adherence to approved welding procedure specifications (WPS) for parameters like current and travel speed. The choice of welding method—whether SMAW, GTAW, GMAW, or mechanized systems—also significantly impacts consistency. Furthermore, only highly qualified welders who meet standards like API 1104 or ASME Section IX should perform this task, as it demands exceptional precision.

Rigorous inspection is mandatory after the root pass is completed. Non-destructive testing methods, such as radiographic testing (RT) and ultrasonic testing (UT), are utilized to verify full penetration and detect internal flaws. Any discontinuities must be repaired before applying subsequent fill and cap passes. Ultimately, flawless execution of the root pass is non-negotiable for ensuring the strength, safety, and long-term reliability of high-performance pipeline systems.

Tack Welding vs. Root Pass: Key Differences

How to Ensure Full Penetration in LSAW Pipe Field Joints.

Our Recommended LSAW Pipe Products and Global Shipping Services.

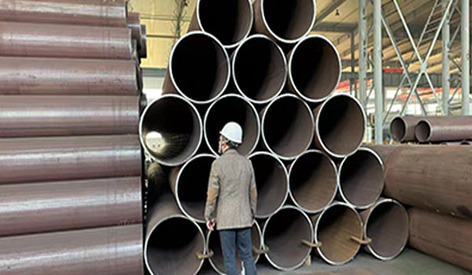

We supply premium LSAW pipes for global oil, gas, and infrastructure projects, including API 5L line pipes (X52-X70) and ASTM A252 piling pipes. We also offer customized 3LPE and FBE anti-corrosion coatings to extend service life. Every pipe undergoes rigorous quality control, including ultrasonic, radiographic, and hydrostatic testing, to guarantee weld integrity and pressure resistance.

To support international projects, we provide comprehensive global shipping solutions, including FCL, LCL, and bulk vessel transportation. Our logistics services cover port-to-port and door-to-port delivery, complete with secure packaging and full export documentation (MTC, CO). By combining high-quality LSAW products, strict quality assurance, and reliable international logistics, we help customers execute pipeline projects safely, efficiently, and with consistent performance across all regions.

Common Mistakes That Prevent Full Penetration

Achieving full penetration in LSAW pipe field joints is critical for pipeline safety, yet several common mistakes can compromise weld integrity. First, incorrect root gap control is a frequent issue; gaps that are too small prevent arc penetration, while oversized gaps cause burn-through. Second, poor tack welding practices, such as using excessively large or ungrounded tacks, can lead to incomplete fusion or slag inclusions during the root pass.

Third, improper welding parameters significantly affect penetration. Insufficient heat input or excessive travel speed prevents the weld from reaching the full pipe wall thickness, whereas excessive heat causes distortion. Fourth, inadequate joint preparation, including poor beveling or the presence of rust and moisture, disrupts arc stability and fusion quality.

Additionally, unqualified welders or inconsistent execution techniques easily result in uneven fusion and internal defects. Finally, insufficient quality control allows these internal flaws to go undetected until the pipeline is in service, making repairs costly. To prevent these defects, strict control over fit-up accuracy, welding parameters, joint cleanliness, welder skill, and non-destructive testing (UT/RT) is essential for ensuring safe and reliable LSAW field joints.

Conclusion

Tack welding and root pass welding serve distinct roles in LSAW pipe field joints. Tack welding is a temporary process for alignment, while the root pass is the permanent foundation, ensuring full penetration and structural integrity. Confusing these steps often leads to critical defects.

Achieving full penetration requires precise root gap control, proper joint preparation, and strict adherence to welding procedures and standards like API 1104. Utilizing qualified welders or mechanized systems is equally vital. Furthermore, rigorous quality control through non-destructive testing (UT, RT, VT) is essential to detect and repair internal flaws early.

By avoiding common mistakes and integrating precise tack welding, accurate root pass execution, and strict quality assurance, contractors can ensure superior structural integrity. This systematic approach guarantees safe, reliable, and long-lasting pipeline operations in demanding industrial environments.

FAQ:

（1） Does tack welding provide full penetration in LSAW pipe joints?

No. Tack welding is used only for temporary alignment and positioning. Full penetration is achieved during the root pass and subsequent welding operations.

（2） Why is the root pass considered the most critical weld pass?

The root pass establishes fusion at the joint root and forms the foundation for all remaining weld layers. Defects in the root pass can compromise the entire weld.

（3） What standards govern the field welding of LSAW pipelines?

Common standards include API 1104, ASME Section IX, ISO 9606, and project-specific pipeline welding specifications.

（4) How can welders verify full penetration?

Full penetration is typically verified through visual inspection, radiographic testing (RT), ultrasonic testing (UT), and qualification testing procedures
