Pipe tees are essential fittings for creating branch connections in piping systems. Choosing the right type is critical for system performance, installation efficiency, and long-term reliability. The two primary types are equal-diameter tees, which feature three openings of the same size, and reducing tees, which have a smaller branch outlet for connecting to a larger main pipeline.
Selecting the appropriate tee requires more than just matching pipe sizes. Engineers must evaluate the application's flow requirements, operating pressure, temperature, material compatibility, and applicable industry standards. Using an unsuitable fitting can lead to unnecessary installation challenges, such as needing extra adapters, or compromise the system's safety and service life.
What Is an Equal-Diameter Tee?
An equal tee is a pipe fitting used to create a branch connection in a piping system. It has three openings, all with the same nominal diameter, allowing the main pipeline and branch line to use the same pipe size at the connection point.
Key Characteristics
Aspect | Description |
|---|---|
Structure | Three openings—two for the main run, one for a branch at approximately 90° |
Diameter | All three openings have the same nominal diameter |
Design | Simple and uniform; easy to specify and match with standard pipe sizes |
Materials | Carbon steel, stainless steel, alloy steel—depending on application |
Standards | Manufactured per industry standards and project specifications |
Common Applications
Application Area | Typical Use |
|---|---|
Industrial process piping | Dividing or combining flow through same-size pipes |
Water supply systems | Branch connections with consistent pipe sizes |
HVAC installations | Same-diameter branches for distribution |
Fire protection systems | Sprinkler and supply line connections |
Utility pipelines | Standard branch connections |
Equal Tee vs. Reducing Tee
Condition | Recommended Fitting |
|---|---|
Branch pipe same size as main pipe | Equal-diameter tee |
Branch pipe smaller or larger than main pipe | Reducing tee |
Selection Factors to Check
Factor | Why It Matters |
|---|---|
Pipe size | Must match all three openings |
Pressure rating | Must meet system requirements |
Temperature | Material must suit operating conditions |
Fluid characteristics | Corrosion and chemical compatibility |
Material compatibility | Must match piping system |
Applicable standards | Ensure compliance and quality |
Key Takeaway
An equal-diameter tee is a practical choice for same-size branch connections. Its uniform dimensions, straightforward installation, and wide range of applications make it a common fitting for both industrial and commercial piping systems.
However, it is not always the right choice—if the branch pipe needs to be smaller or larger than the main pipeline, a reducing tee may be more appropriate. The correct choice should always be based on the piping layout, flow requirements, and engineering specifications.
What Is a Reducing Tee?
A reducing tee is a pipe fitting used to create a branch connection between pipes of different diameters. Unlike an equal-diameter tee, which has three openings of the same size, a reducing tee has a branch outlet that is smaller (or different) in diameter from the main pipe. This allows a smaller branch line to connect directly to a larger main pipeline.
Key Characteristics
Aspect | Description |
|---|---|
Structure | Three openings—two for main run (same diameter), one branch (different size) |
Function | Combines branching and size reduction in one fitting |
Example | 6-inch main pipe to 4-inch branch pipe |
Materials | Carbon steel, stainless steel, alloy steel—depending on application |
Standards | Manufactured per industry standards and project specifications |
Common Applications
Application Area | Typical Use |
|---|---|
Oil and gas pipelines | Branching to smaller lines |
Chemical processing | Connecting equipment with different pipe sizes |
Water treatment | Distribution to smaller supply lines |
Power plants | Branch connections with size transitions |
HVAC systems | Reducing branches for different flow requirements |
General process piping | Branching where flow capacity differs |
Equal Tee vs. Reducing Tee
Condition | Recommended Fitting |
|---|---|
Branch pipe same size as main pipe | Equal-diameter tee |
Branch pipe smaller or larger than main pipe | Reducing tee |
Selection Factors to Check
Factor | Why It Matters |
|---|---|
Main pipe size | Must match run openings |
Branch pipe size | Must match branch outlet |
Pressure rating | Must meet system requirements |
Wall thickness | Must suit operating conditions |
Material compatibility | Must match conveyed medium and environment |
Applicable standards | Ensure compliance and quality |
Flow requirements | Branch flow rate and pressure loss must be considered |
Key Takeaway
A reducing tee is an effective solution for branching from a main pipeline to a pipe with a different diameter. By combining a branch connection with a size transition, it:
Simplifies installation – eliminates need for separate reducer and tee
Reduces connections – fewer potential leak points
Provides compact design – space-efficient fitting
The correct size should not be selected simply by matching available pipe—engineers must consider branch flow rate, pressure loss, system design, and applicable standards.

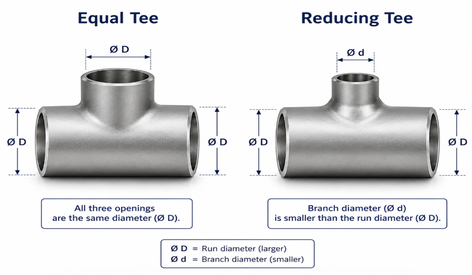

Equal-Diameter Tees vs. Reducing Tees: Key Differences
Equal-diameter tees and reducing tees are both used to create branch connections in piping systems, but they are designed for different pipe configurations. The main difference is the size of the branch outlet—equal tees have three openings of the same diameter, while reducing tees have a branch outlet with a different diameter from the main pipe.
Key Differences
Factor | Equal-Diameter Tee | Reducing Tee |
|---|---|---|
Branch Size | Same as main pipe | Different from main pipe |
Main Purpose | Same-size branch connection | Different-size branch connection |
Flow Requirement | Similar branch capacity | Lower or different branch capacity |
Installation | Simple same-size connection | Combines branching and size reduction |
Typical Use | Uniform piping systems | Systems with varying pipe sizes |
Example | 4" main to 4" branch | 6" main to 4" branch (6 × 6 × 4) |
Selection Guide
Condition | Recommended Tee |
|---|---|
Branch pipe same size as main pipe | Equal-diameter tee |
Branch pipe smaller or larger than main pipe | Reducing tee |
Branch requires similar flow capacity | Equal-diameter tee |
Branch requires lower flow capacity | Reducing tee |
Uniform piping system | Equal-diameter tee |
Varying pipe sizes in system | Reducing tee |
Selection Factors to Check
Factor | Why It Matters |
|---|---|
Pipe dimensions | Must match main and branch sizes |
Flow rate | Affects branch size requirement |
Pressure drop | Must be considered for system performance |
Fluid properties | Affects material selection |
Operating temperature | Material must suit conditions |
Applicable standards | Ensure compliance and quality |
Connection type | Must be compatible with system |
Key Takeaway
Equal-diameter tee – better choice when all three connections require the same pipe size
Reducing tee – appropriate when the branch needs a different diameter
Before making a final selection, always confirm:
Pipe dimensions
Pressure and temperature requirements
Material compatibility
Connection type
Applicable industry standards
Proper selection ensures reliable operation and avoids unnecessary modifications during installation.
How to Choose the Right Tee for Your Project
Selection Factors
Factor | Action | Why It Matters |
|---|---|---|
Pipe Diameters | Confirm main and branch sizes; equal for same-size, reducing for different-size | Ensures proper fit and connection |
Flow & Pressure | Consider flow rate, pressure drop, operating pressure | Tee must meet system performance requirements |
Material | Select carbon steel, stainless steel, or alloy steel per fluid and environment | Corrosion resistance, temperature, and chemical compatibility |
Connection Type | Butt-weld, socket-weld, or threaded; match pipe system | Ensures proper installation and compatibility |
Standards | Verify ASME, ASTM, or other applicable standards | Ensures quality and compliance |
Installation & Maintenance | Check available space; consider future replacement needs | Standard sizes and materials simplify maintenance |
Supplier Quality | Confirm manufacturing capability, QC, inspection docs, delivery | Ensures product quality and traceability |
Tee Selection Guide
Condition | Recommended Tee |
|---|---|
Main and branch same size | Equal-diameter tee |
Main and branch different sizes | Reducing tee |
Branch requires similar flow capacity | Equal-diameter tee |
Branch requires lower flow capacity | Reducing tee |
Uniform piping system | Equal-diameter tee |
Varying pipe sizes in system | Reducing tee |
Pre-Order Checklist
Item | Check |
|---|---|
Pipe sizes | Main and branch diameters confirmed |
Flow rate | Meets system requirements |
Pressure rating | Sufficient for operating conditions |
Temperature | Material suitable |
Material grade | Compatible with fluid and environment |
Connection type | Matches pipe system |
Standards | ASME, ASTM, or project specification |
Supplier | Certificates and inspection reports available |
Recommended Products and Shipping Information
We supply premium equal-diameter and reducing tees tailored for diverse industrial, HVAC, and oil and gas piping applications. Our equal-diameter tees are ideal for same-size branch connections, while our reducing tees provide an efficient solution for connecting different pipe sizes without requiring separate reducers. Both are available in a wide range of sizes, materials, and industry standards.
Quality and precision are paramount. We manufacture our tees to exact specifications and offer comprehensive quality documentation, including material certificates and inspection reports. For projects with unique requirements, we also provide customized solutions for non-standard dimensions and special materials.
Beyond manufacturing, we provide end-to-end global shipping solutions. We understand that timely delivery is critical to maintaining project schedules. Our logistics team manages secure packaging, protective measures, and flexible shipping options—including sea, air, and express freight—to prevent transit damage and ensure your fittings arrive safely and on time.
From technical consultation to final delivery, we provide a complete, reliable supply chain for your pipe fitting needs. To receive a customized product and shipping quotation, please contact us today with your required pipe sizes, material specifications, quantity, and delivery destination. Our expert team will recommend the optimal tee configuration and efficient shipping plan tailored to your project's exact requirements.
Conclusion:
Choosing the right tee is essential for designing a reliable piping system. While both equal-diameter and reducing tees provide branch connections, they serve different purposes. Equal-diameter tees are ideal when the main pipe and branch pipe share the same size, offering a straightforward and uniform connection. Conversely, reducing tees are specifically designed to connect a smaller branch line to a larger main pipeline, streamlining the layout and eliminating the need for additional reducers.
However, pipe diameter is not the only factor in fitting selection. Engineers and contractors must also evaluate the system's flow requirements, operating pressure, temperature, material compatibility, and applicable industry standards. The selected fitting must safely withstand the actual operating environment and transport the intended fluid.
Before purchasing, it is critical to verify all technical details, including nominal pipe size, wall thickness, material grade, and pressure ratings. Accurate specifications prevent installation delays, incorrect fits, and costly replacements.
FAQ：
FAQ 1: What is the main difference between an equal-diameter tee and a reducing tee?
An equal-diameter tee has three outlets of the same size, while a reducing tee has a branch outlet with a different diameter from the main pipe.
FAQ 2: When should I use a reducing tee instead of an equal-diameter tee?
Use a reducing tee when you need to connect a smaller or differently sized branch pipe to a larger main pipeline.
FAQ 3: How do I determine the correct tee size for my piping system?
Consider the main pipe size, branch pipe size, flow rate, pressure, temperature, material, connection type, and applicable piping standards.
FAQ 4: Can reducing tees be customized for different pipe sizes?
Yes, reducing tees can often be manufactured in different size combinations and materials. Custom requirements should be confirmed with the supplier before ordering.
