Why LSAW Pipes with 3LPE Coating Are Essential for Offshore Reclamation Projects.

Offshore land reclamation is one of the most demanding environments for steel piping. The combination of saltwater, tidal movement, and abrasive backfill can destroy ordinary pipelines within months, risking costly project delays.

For critical applications like slurry transport and dewatering, the industry standard is Longitudinally Submerged Arc Welded (LSAW) pipe with a Three-Layer Polyethylene (3LPE) coating. LSAW provides superior dimensional accuracy, weld integrity, and predictable fatigue performance under seabed settlement compared to spiral-welded alternatives. Meanwhile, 3LPE creates an impermeable barrier against chlorides, marine microbes, and cathodic disbondment while resisting abrasion during installation.

Why LSAW Pipe for Offshore Reclamation?

For offshore land reclamation, the manufacturing method of steel pipe directly impacts long-term reliability under cyclic loads and seabed settlement. Longitudinally Submerged Arc Welded (LSAW) pipe consistently outperforms spiral-welded alternatives in these demanding environments.

1. Manufacturing & Inspection: LSAW is formed from a single steel plate with a straight seam, allowing for 100% complete non-destructive testing (UT/MT). This ensures defect-free production, unlike the helical welds of SSAW, which complicate inspection.

2. Mechanical Performance: Offshore pipes face bending, axial tension, and external pressure. LSAW’s straight weld offers uniform strength and predictable fatigue resistance. In contrast, SSAW's spiral weld is subjected to combined stresses, increasing failure risks. Consequently, major design codes like DNV-OS-F101 favor LSAW for dynamic marine service.

3. Dimensional Consistency: LSAW provides excellent roundness and straightness, ensuring uniform 3LPE coating thickness and simplifying field alignment on lay barges. It efficiently covers the 16" to 60" OD range required for slurry lines, where seamless options are unavailable.

While SSAW may offer lower upfront costs, the potential expense of a spiral weld failure under settlement stress makes it a risky choice. For critical offshore reclamation, specifying LSAW guarantees inspectable welds, superior fatigue life, and dimensional accuracy.

Why 3LPE Coating is Non-Negotiable

For offshore land reclamation, unprotected steel pipe can perforate in under two years. To ensure decades of reliable service, Three-Layer Polyethylene (3LPE) coating is non-negotiable.

3LPE is an engineered composite system designed to combat marine corrosion and mechanical damage:

1. Epoxy Primer: Chemically bonds to the steel, providing adhesion and cathodic disbondment resistance.

2. Copolymer Adhesive: Bridges the epoxy and polyethylene layers, preventing separation under thermal or mechanical stress.

3. Polyethylene Outer Layer: Acts as a dense, impermeable barrier against saltwater, chlorides, and marine microbes while resisting abrasion during backfilling and towing.

Unlike single-layer Fusion-Bonded Epoxy (FBE), which lacks mechanical toughness, or coal tar coatings that crack under bending, 3LPE combines superior adhesion with extreme durability. It withstands continuous immersion, temperatures from -40°C to 80°C, and minor impacts during installation. Skipping this premium coating forces the use of thicker walls to allow for corrosion, ultimately increasing steel costs. Furthermore, underwater field repairs cost 10–20 times more than upfront coating.

To guarantee quality, always specify 3LPE per DIN 30670, CSA Z245.21, or ISO 21809-1 standards, and mandate zero-defect holiday testing (spark testing at 5–15 kV). For offshore reclamation, 3LPE is not merely an upgrade—it is the minimum acceptable standard for long-term project safety and cost-efficiency.

LSAW + 3LPE: Integrated System Performance in Reclamation

Our Company’s Product Recommendations & Shipping Information

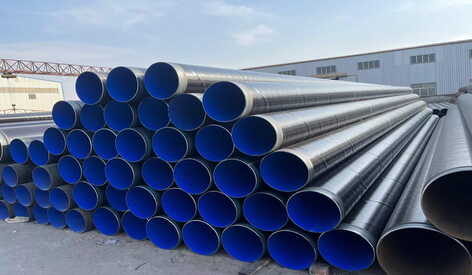

LSAW Steel Pipe – API 5L PSL2 with 3LPE Coating

Standard inclusions with every order:

(1) Mill test reports (MTRs) with full chemical and mechanical properties.

(2) Coating application logs, including temperature profiles and thickness readings.

(3) Holiday test report (spark test at 10–15 kV, zero holidays).

(4) Third-party inspection option (SGS, BV, Intertek) at buyer's request.

Value-add services:

(1) Ultrasonic testing (UT) on 100% of weld seams.

(2) Custom coating repair kits included for field touch-ups.

(3) Concrete weight coating available over 3LPE for rocky backfill.

Contact our marine project team with your required diameter, wall thickness, coating thickness, grade, and destination port. We provide a same-day project quotation.

FAQ:

(1) Can I use SSAW (spiral welded) pipe instead of LSAW for offshore reclamation to save cost?

While SSAW pipe has a lower upfront cost, it is not recommended for critical offshore reclamation. SSAW's spiral weld experiences complex residual stresses and is more prone to weld seam failure under the cyclic bending and settlement loads common in reclaimed land. LSAW offers a straight, fully inspected weld seam with better fatigue resistance. Most offshore project specifications (e.g., DNV, Shell DEP) explicitly require LSAW for diameters above 24" in dynamic service. The long-term reliability of LSAW justifies the marginal price premium.

(2) How long does 3LPE coating last in a submerged offshore environment?

Properly applied 3LPE coating (minimum 2.5 mm total thickness, DIN 30670 compliant) provides 30–50 years of service life in seawater, assuming no mechanical damage during installation. The polyethylene layer is impermeable, while the epoxy primer maintains adhesion even under cathodic protection. However, coating life depends on application quality – holiday testing (spark testing) at 5–15 kV must show zero defects. For reclamation projects with rocky backfill, consider a concrete weight coating over the 3LPE for additional abrasion resistance.
