Characteristics, production, and application details of SA335P2 seamless steel pipe

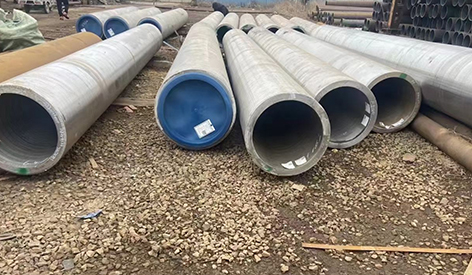

SA335P2 seamless steel pipe is an alloy steel pipe widely used in high-temperature and high-pressure environments, boasting excellent heat resistance, corrosion resistance, and mechanical properties. This steel pipe is primarily used in industries such as power generation, petrochemicals, and boiler manufacturing, playing a particularly important role in high-temperature and high-pressure steam piping systems.

First, Material Properties of SA335P2 Seamless Steel Pipe

SA335P2 seamless steel pipe is a chromium-molybdenum alloy steel, primarily composed of carbon, silicon, manganese, phosphorus, sulfur, chromium, and molybdenum. This unique material formulation enables it to maintain excellent mechanical properties and oxidation resistance even in high-temperature environments. Typical mechanical properties include: tensile strength ≥415 MPa, yield strength ≥205 MPa, and elongation ≥30%. These properties enable SA335P2 steel pipe to withstand the various stresses of high-temperature and high-pressure operating conditions, ensuring the safe and stable operation of pipeline systems. Regarding corrosion resistance, the chromium content creates a dense chromium oxide protective film on the surface of SA335P2 steel pipe, effectively resisting oxidation and corrosion. The addition of molybdenum further enhances the material's creep resistance, enabling it to maintain structural integrity even under long-term, high-temperature service. These properties make SA335P2 steel pipe an ideal choice for high-temperature, high-pressure piping systems.

Second, SA335P2 Seamless Steel Pipe Production Process

SA335P2 seamless steel pipe undergoes a rigorous production process, primarily using hot rolling or cold drawing. The production process typically includes the following key steps:

1. Billet Preparation: High-quality alloy steel billets are selected and rigorously inspected for chemical composition and surface quality.

2. Heating and Piercing: After heating the billet to the desired temperature, it is passed through a piercing machine to form a hollow tube billet.

3. Rolling and Elongation: The billet is processed to the desired dimensions using hot rolling or cold drawing, a process that requires precise control of temperature and deformation.

4. Heat Treatment: Normalizing and tempering heat treatment is performed to optimize the material's microstructure and mechanical properties.

5. Finishing: This includes straightening, trimming, and surface treatment to ensure the pipe's dimensional accuracy and surface quality. 6. Nondestructive Testing: Comprehensive nondestructive testing using methods such as ultrasonic, eddy current, and radiographic methods ensures the internal quality of the steel pipes.

7. Hydrostatic Testing: Each steel pipe undergoes rigorous hydrostatic testing to verify its pressure-bearing capacity.

Strict control of the production process is key to ensuring the quality of SA335P2 steel pipes. Reputable manufacturers will establish a comprehensive quality control system that monitors the entire process, from raw materials to finished product.

Third, Application Areas of SA335P2 Seamless Steel Pipes

SA335P2 seamless steel pipes are widely used in various industrial sectors due to their excellent performance:

1. Power Industry: Primarily used in high-temperature superheaters, reheaters, and main steam piping systems in power plant boilers. In supercritical and ultra-supercritical units, SA335P2 steel pipes can withstand operating temperatures up to 600°C and pressures of tens of MPa.

2. Petrochemical Industry: Used in refinery hydrotreating units, cracking units, and various high-temperature and high-pressure process piping. Its high-temperature and hydrogen corrosion resistance make it particularly suitable for demanding operating conditions such as hydrocracking.

3. Boiler Manufacturing: As the primary material for boiler heating surface, steel pipes and headers, SA335P2 steel pipes are widely used in various industrial boilers and power plant boilers.

4. Nuclear Power Industry: SA335P2 steel pipes are also commonly used in high-temperature, high-pressure steam piping systems in the conventional island section of nuclear power plants.

As my country's power industry evolves towards higher efficiency and cleaner operation, the construction of supercritical and ultra-supercritical units is accelerating, and demand for SA335P2 steel pipes continues to grow. Furthermore, this type of steel pipe also holds broad market prospects in power construction in countries along the Belt and Road Initiative.

Fourth, Market Status of SA335P2 Seamless Steel Pipes

The current SA335P2 seamless steel pipe market is highly competitive, and product quality varies widely. Major domestic manufacturers include large steel groups and specialized seamless steel pipe manufacturers. These companies possess advanced production equipment and mature technologies, and their product quality reaches internationally advanced levels. Market prices for SA335P2 steel pipes are significantly influenced by factors such as raw material costs and market demand. Depending on the specifications, the current market price ranges roughly from 8,000 to 15,000 yuan per ton. Steel pipes with special specifications or requiring higher performance indicators may be more expensive. It's worth noting that some inferior products are being sold as superior quality products in the market. To reduce costs, some small manufacturers may cut corners on material composition or heat treatment processes, resulting in substandard product performance. Therefore, users should pay special attention to the supplier's qualifications and product quality certification when purchasing.

Fifth, Key Points for Purchasing SA335P2 Seamless Steel Pipes

When purchasing SA335P2 seamless steel pipes, consider the following key factors:

1. Supplier Qualifications: Select a supplier with relevant production qualifications and a good market reputation. Reputable manufacturers should be able to provide complete quality documentation, including material certificates, heat treatment records, and non-destructive testing reports.

2. Product Certifications: Verify that the product has passed relevant certifications, such as ASME, PED, and GB standards. These certifications are crucial guarantees of product quality. 3. Dimensional Accuracy: Measure the actual dimensions of the steel pipe, including outer diameter, wall thickness, and length, to ensure they meet operating requirements. Pay particular attention to wall thickness uniformity, which is particularly important for high-pressure pipes.

4. Surface Quality: Inspect the inner and outer surfaces of the steel pipe for defects such as cracks, folds, and scarring. High-quality steel pipe should have a smooth, flat surface without obvious defects.

5. Chemical Composition and Mechanical Properties: Require suppliers to provide third-party testing reports to verify that the material's chemical composition and mechanical properties meet standard requirements.

6. Price Comparison: While ensuring quality, compare prices from multiple sources. However, be careful not to simply pursue the lowest price, as excessively low prices often indicate quality risks.

7. After-Sales Service: Understand the supplier's after-sales service policy, including quality dispute resolution and technical support.

Sixth, Use and Maintenance of SA335P2 Seamless Steel Pipe

Proper use and maintenance of SA335P2 seamless steel pipe is crucial to extending its service life:

1. Installation Specifications: Strictly follow relevant specifications when installing the pipe, paying particular attention to welding process control. The recommended welding process is argon arc welding for the base and manual metal arc welding for the filler and cap.

2. Operation Monitoring: Regularly inspect the pipeline during operation to monitor changes in wall thickness and deformation. A regular inspection system should be established for high-temperature and high-pressure pipelines.

3. Anti-corrosion Measures: Although SA335P2 steel pipes have good corrosion resistance, appropriate anti-corrosion measures, such as coating protection, are still required in certain harsh environments.

4. Life Assessment: For pipelines in long-term operation, regular life assessments, particularly creep damage assessments, should be conducted to ensure safe operation.

Seventh, Future Development Trends of SA335P2 Seamless Steel Pipes

With advancements in material technology and increasing industrial demand, the development of SA335P2 seamless steel pipes is showing the following trends:

1. High Performance: Through microalloying and process optimization, the high-temperature resistance and creep resistance of the steel pipes are further improved to meet the requirements of higher-parameter units.

2. Green Manufacturing: Greater emphasis is placed on energy conservation and emission reduction during production, with the development of more environmentally friendly production processes to reduce energy consumption and emissions. 3. Intelligent Production: Applying technologies such as the Industrial Internet and big data will enable intelligent control and quality management of the production process.

4. International Competition: Excellent domestic steel pipe companies will further enhance their international competitiveness and participate in global high-end market competition.

In short, SA335P2 seamless steel pipe, as a key material for high-temperature and high-pressure piping systems, plays an irreplaceable role in my country's energy construction and industrial development. Users should fully understand its characteristics and requirements during purchase and use to ensure the safe and reliable operation of piping systems. At the same time, the industry should continuously strengthen technological innovation and quality improvement to meet growing industrial demands.
