What are the details of precision control for seamless steel pipe fittings in hydraulic systems

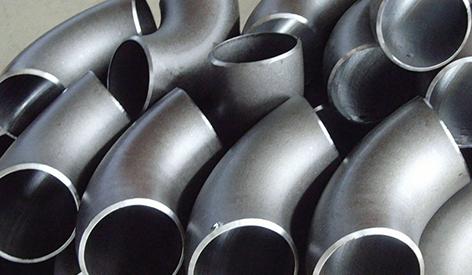

First, the core requirements for precision machining of seamless steel pipe fittings in hydraulic systems.

As the core of power transmission in various mechanical equipment, the precision machining of seamless steel pipe fittings in hydraulic systems directly affects the system's sealing performance, pressure loss, and service life. Core precision requirements include:

1) Dimensional accuracy: Outer diameter tolerance controlled within ±0.05mm, inner diameter roundness error ≤0.03mm, wall thickness uniformity deviation not exceeding ±5% of nominal wall thickness;

2) Form and position accuracy: Straightness ≤0.2mm/m, end face perpendicularity error ≤0.02mm, coaxiality of threaded connections ≤0.04mm;

3) Surface accuracy: Inner surface roughness Ra≤1.6μm, outer surface Ra≤3.2μm, free from scratches, oxide scale, and other defects. These requirements stem from the high-pressure operating conditions of hydraulic systems. Insufficient precision can easily lead to oil leakage, increased pressure loss, and even safety hazards such as fatigue cracking of pipe fittings.

Second, Analysis of Key Factors Affecting the Machining Accuracy of Seamless Steel Pipe Fittings

(I) Raw Material Characteristics of Seamless Steel Pipe Fittings

The material uniformity, initial roundness, and residual stress of seamless steel pipes are the foundation of accuracy control. If the raw material has excessive wall thickness deviation, uneven grain size, or concentrated residual stress from rolling, deformation will occur during subsequent processing due to stress release. For example, if the initial wall thickness deviation of a 20# seamless steel pipe exceeds 0.3mm, the inner diameter roundness error after turning may increase by more than 30%.

(II) Machining Process Parameters of Seamless Steel Pipe Fittings

1) Cutting Process: The matching of cutting speed, feed rate, and depth of cut directly affects dimensional stability. Taking a seamless steel pipe fitting with a diameter of φ50×5mm as an example, when using carbide cutting tools, the optimal cutting speed is 120-150m/min, the feed rate is 0.15-0.2mm/r, and the depth of cut should not exceed 1.5mm per pass; otherwise, vibration may occur, leading to dimensional fluctuations.

2) Heat treatment process: Improper control of the quenching and tempering temperature (850-900℃), holding time (2-3h), and cooling rate can lead to uneven hardness of the pipe fitting (requiring HRC28-32), thus affecting subsequent cutting accuracy.

3) Forming processes: In forming processes such as bending and flaring, the die accuracy (tolerance ≤0.02mm) and pressure parameters (fluctuation ≤±5%) directly determine the dimensional and positional accuracy of the seamless steel pipe fitting.

(III) Equipment and Inspection Support for Seamless Steel Pipe Fittings

1) Processing Equipment: Spindle runout (≤0.01mm) and guide rail straightness (≤0.02mm/m) of CNC lathes, bending machines, and other equipment must be calibrated regularly; otherwise, systematic errors will be introduced.

2) Inspection Methods: Conventional dimensions are measured using micrometers and inside diameter gauges (accuracy ±0.001mm). Geometric errors are verified using a coordinate measuring machine (measurement accuracy ≤0.005mm). Surface quality is inspected using a roughness tester and an industrial endoscope.

Third, Practical Measures for Controlling the Machining Accuracy of Seamless Steel Pipe Fittings

(I) Optimization of Raw Material Pretreatment for Seamless Steel Pipe Fittings

Use ultrasonic testing to detect internal defects in raw materials, screening for steel pipes with a wall thickness deviation ≤ 0.1 mm;

Perform stress-relieving annealing treatment on the steel pipes (temperature 600-650℃, holding for 4 hours) to reduce residual stress and minimize machining deformation;

After pretreatment, perform end face and chamfering processing on both ends of the steel pipes to ensure subsequent clamping and positioning accuracy (positioning error ≤ 0.01 mm).

(II) Refined Control of Processing Parameters for Seamless Steel Pipes and Fittings

1) Cutting Process: Differentiated cutting parameters are formulated based on the material of the seamless steel pipe fittings (e.g., 20#, 45# steel, or stainless steel). For example, stainless steel fittings use lower cutting speeds (80-100 m/min) and feed rates (0.1-0.15 mm/r) to avoid tool sticking.

2) Heat Treatment Process: A continuous tempering furnace is used, with temperature fluctuations controlled within ±5℃ using a PID temperature control system. The cooling stage employs a combination of oil cooling and air cooling to ensure uniform hardness.

3) Forming Process: Before bending, the seamless steel pipe fittings are preheated (200-300℃). A CNC bending machine is used to achieve precise control of pressure and angle (angle error ≤0.5°). The molds are periodically polished (surface roughness Ra≤0.8μm) to reduce frictional deformation.

(III) Enhanced Equipment Maintenance and Process Inspection of Seamless Steel Pipe Fittings

Establish a regular equipment calibration system, checking CNC lathe spindle runout and guideway accuracy monthly, and calibrating the coordinate measuring machine quarterly;

1) Implement a "three-inspection system": inter-process self-inspection (operators use specialized tools to inspect key dimensions), mutual inspection (cross-inspection between work teams), and specialized inspection (quality inspectors use precision instruments for full-item inspection), with a key dimension inspection frequency of no less than 5 pieces per batch;

2) Utilize Statistical Process Control (SPC) methods to statistically analyze machining dimensional data. When the CPK value is below 1.33, adjust process parameters or equipment status promptly.

Summary

Controlling the machining accuracy of seamless steel pipe fittings in hydraulic systems is a systematic project requiring coordinated efforts from multiple aspects, including raw materials, processes, equipment, and inspection. Effective implementation of accuracy requirements can be achieved through optimized raw material pretreatment, refined control of process parameters, and enhanced equipment maintenance and process inspection. In the future, with the development of intelligent manufacturing technology, the introduction of digital twins and online monitoring systems will further improve the real-time performance and stability of precision control, providing core assurance for the efficient and reliable operation of hydraulic systems.
